| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE, ISO9001 |
| Model Number: | YXS-64-2C |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Sets/month |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support |
|---|---|---|---|
| Dimension(l*w*h): | 3600*1500*1700 MM | Quilting Width: | 1700 MM |
| Rolling Speed: | 500-800 RPM | Output: | 10-195 M/H |
| High Light: | 800rpm Garment Quilting Machine,Computerized Garment Quilting Machine,195M/H Quilting Machine |
||

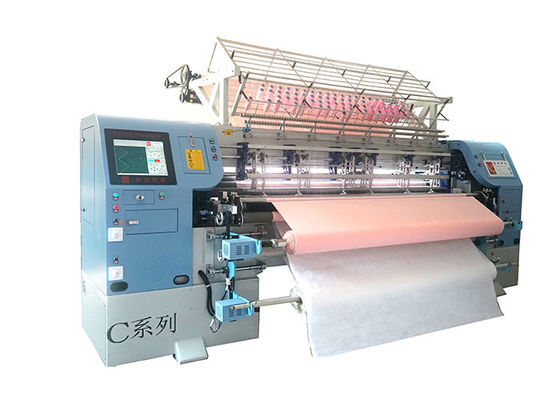

800rpm Computerized Multi-Needle Lock Stitch Garment Quilting Machine
mainly used in high end garments,jackets,pamajas,sleeping bag, quilts, bedcover,cushion,etc.
Specification:
| Product Name | High Speed Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine |
| Model |
YXS-64-2C |
| Size(L*W*H) | 3600*1500*1700mm |
| Weight | 3500kg |
| Quilting width | 1700mm |
| Needle bar space | 76.2mm(3”) |
| Quilting thickness | ≤50mm |
| Rolling speed | 500-800r/min |
| Output | 0-195m/h |
| Needle type | #16,#19 |
| X-axis movement | 254mm |
| Needle space | 25.4mm |
| Stitch | 2-6mm |
| Rated voltage(AC) | 380V/50HZ,220V/60HZ |
| Power | 3.5KW |
Functions:
Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
Needle bar running with needle bar frame, no need to add extra lube,avoid the materials be soiled by lube.
Adjust speed by computer, the speed can reach 800r/min,the stitch can be set between 2mm-6mm.
Needle bar frame structure is more firm and durable, so that the cost of maintenance is cheaper.
Compensation function, an effective solution for looping pattern with thick material.
360°random quilting and limitless multi-span and independent quilting.
Pattern editing is easy to learn. Ringing notice when start machine.
Adopt the advanced computer and mechanistic technology.
Saddling rack and roller are driven by servo equipment.
Principal axis uses the frequency conversion device.
