| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE IOS9001 |
| Model Number: | YXS-94-3D |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | packed by plastic film |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Sets/month |
| Product Name: | Duvet Quilting Machine | Work Speed: | Maximum 1200rpm |
|---|---|---|---|
| Quilting Width: | 2450MM | Quilting Thickness: | Max. 50 MM |
| Stitch: | 2-8 MM | Needle Bar: | 3 Bars |
| Other Function: | Automatic Adding Oil | Warranty: | One Year |
| High Light: | 1200rpm Multi Needle Quilting Machine,2450MM Multi Needle Quilting Machine,2450mm Duvet Quilting Machine |
||

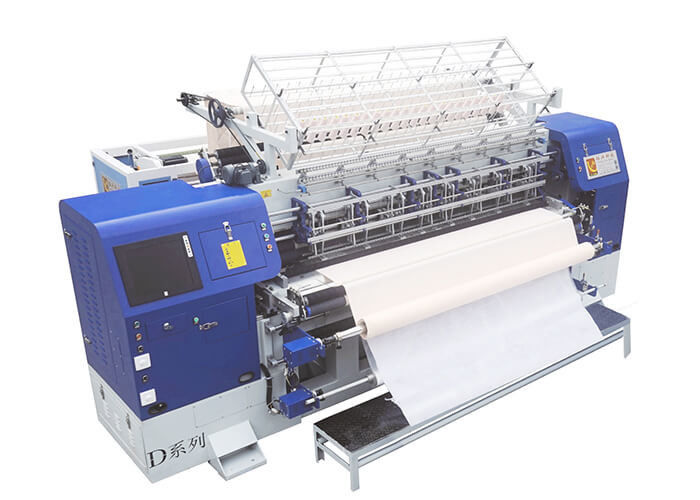

1200rpm 94 Inch Automatic Multi-Needle Quilting Machine For Bed Cover
Strength
This 94 inch automatic multi needle quilting machine is suitable for home textile production, like quilt / blanket / bedspread / bed cover / comforter.
Compared to the single needle quilting machine, because it is continuous running, no need worker to clip quilt on frame, and it is working with multi needle, speed is faster on working, save labor cost.
Compared to the common multi needle quilting machine in the market, its speed is as fast as 1200rpm, one hour can sew about 150m/hour quilt with simple diamond design. Besides, it is compatible to embroidery designs, some design with embroidery effect is also capatible. Meanwhile, it has oil adding system, more humanized and prolong the lifetime of bearings.
Specification:
| Product Name | High Efficiency Computerized Multi-needle Quilting Machine |
| Model | YXS-94-3D(3”+3”) |
| Size(L*W*H) | 4730*1750*1700mm |
| Weight | 5800kg |
| Quilting width | 2450mm |
| Needle row distance | 3D 152.4mm |
| Quilting thickness | maximum 5cm |
| Sewing speed | 500-1200r/min |
| Speed of operation | 10-240m/hour |
| Needle type | #16,#19 |
| X-axis movement displacement | 10 inch |
| Space between needle | 2.54cm |
| Length of stitch | 2-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Total Power | 6.5KW |
Functions:
1. Adopt the advanced computer and mechanistic technology.
2. Principal axis uses the frequency conversion device.
3. The infrared system, make you operate safer.
4. Fault detection function for ease of determining the running state of the machine at any given time.
5. Saddling rack and roller are controlled by servo equipment.
6. Multi-span and independant patterns(360 and 180 patterns are available).
7. high rigidity, high running speed, low vibration and noise.
8. Compensation function, an effective solution for looping pattern with thick material.
9. Adopt the mouse make pattern directly and compatible with embroidery file format(DST / DSB).
10. Adjust speed by the computer, the speed can reach 1200r/min, the stitch can be set between 2mm-8 mm.

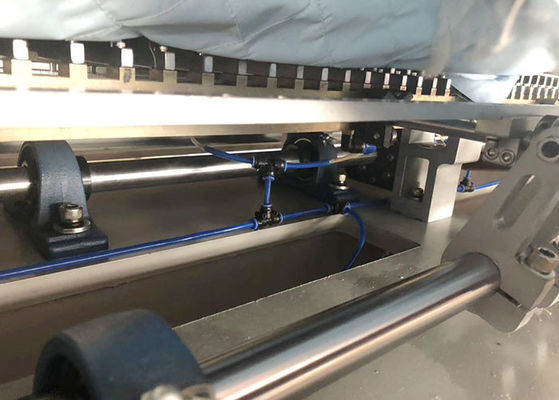

11. The automatic adding oil system is more convenient for maintenance, it extends the bearing life-span.
12. Automatic stop motion control in case the top thread breaks.
Pattern show
