| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-64-3D |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packed by plastic film |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 SETS/MONTH |
| Product Name: | Multi Needle Quilter | Gross Weight: | 4800kg |
|---|---|---|---|
| Work Width: | 170cm | Max Sewing Thickness: | 50mm |
| Max Sewing Speed: | 1200 Roll/MIN | Yield: | 10-240m/hour |
| High Light: | 64 inch Multi Needle Quilting Machine,4KW Multi Needle Quilting Machine,240m/hour Multi Needle Quilting Machine |
||

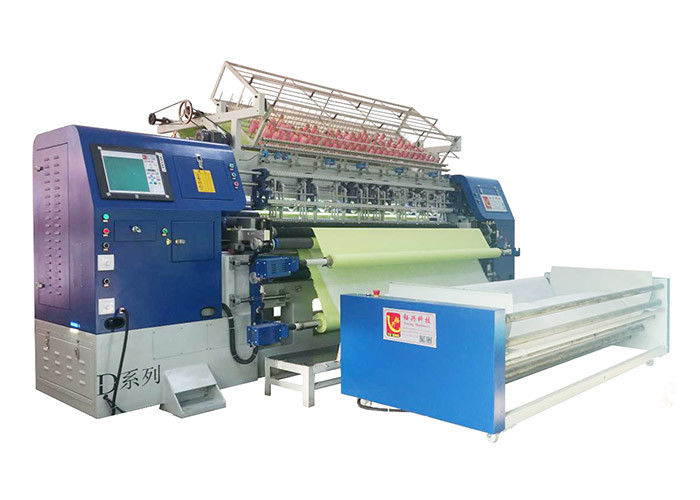

1200rpm Computerized Multi Needle Quilter 64 Inch For Clothing
Description
D series computerized lock stitch multi needle quilter (quilting) machine is the upgrade model based on model C series. It has below upgraded place.
Exterior: Machine body and beam are reinforced.
Parts: core bearings adopt imported bearings, conveyor belts to replace triangle belt, encoders replace optocoupler.
Motors: adopt Japan famous brand big power servo motor.
Software: use new upgraded software.
Function: speed higher, compatible to embroidery designs, automatic oil refueling.
Parameter
| Model | YXS-64-3D |
| L×W×H | 3935*1750*1700 |
| Quantity of needle bar | 3 |
| Quilting width | 1700 |
| Space between needle rows | 152.4(3'+3') |
| Space between needles | 25.4 |
| X-axis movement dispacent | 204 |
| Maximum thickness of padding | 50 |
| Stitch length | 2~8 |
| Speed of operation(m/H) | 10~240 |
| Type of needle | 14#, 16#,19# |
| Max sewing speed | 500~1200 |
| Total power | 4000W |
| Voltage |
380V/50HZ; 220V/60HZ |
| Gross weight | 4800kg |
Features
1. Fuselage and beam and foot are reinforced, which help machine works more stably with high speed..
2. Needle bar running with needle bar frame,no need to add extra lube, avoiding the materials be soiled by lube.
3. Firm and durable needle bar frame structure , so that it can reduce the cost of maintenance.
4. X and Y axis are driven by servo equipment. Principal axis adopts the frequency conversion device
5. The automatic oil refueling function can extend the machine lifetime.
6. Adjust speed by computer 500r-1200r/min, set different stitch length(2mm-8mm) from computer .
7. New computer system, compatible to embroidery designs. Multi-span independent pattern (360°and 180° patterns are available).
8. When work with thick material, compensation function can solve the problem for looping pattern.
9. Auto stop sensor detect thread condition, when thread broken, machine automatically stop.
10. When hand block the infrared system , machine will auto stop, which makes your operation safer.
11. Easy to draw new desig by mouse and it can connect usb disk to copy new design.
12. Ringing notice and infrared system, which can make the operation safer.

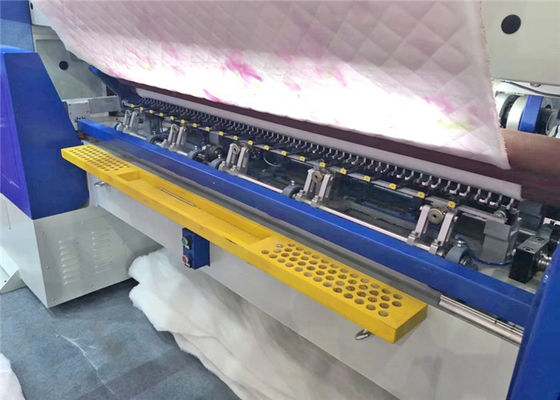

Detailed picture
Installation layout

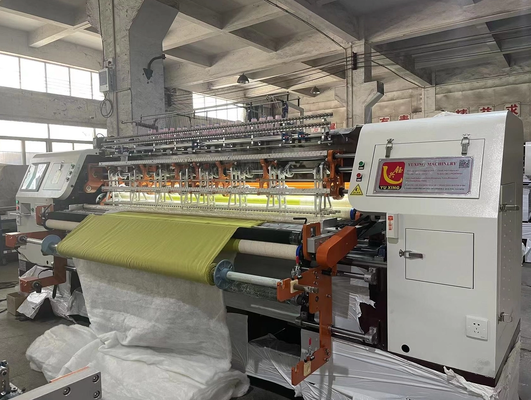

Customer's factory
