| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXH-128-50.8B |
| Minimum Order Quantity: | 1 Sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Sets/month |
| Heads Quantity: | 33 | Diamension: | 540cm*140cm*200cm |
|---|---|---|---|
| Needle Quantity: | 66 Pcs | Embroidery Width: | 128 Inch |
| Running Speed: | 1000rpm | Shuttle Type: | Big Rotary Shuttle |
| High Light: | 1000rpm Multi Head Embroidery Machine,128 Inch Multi Head Embroidery Machine,3454mm Multi Head Embroidery Machine |
||

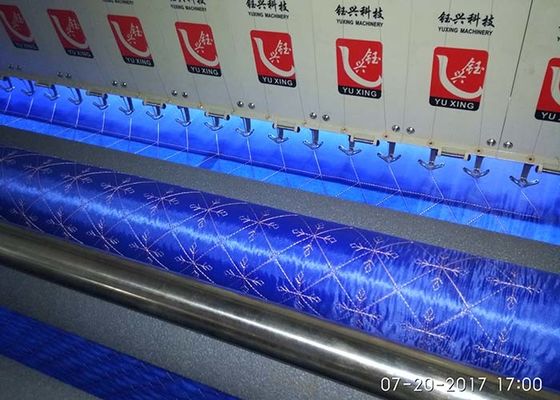

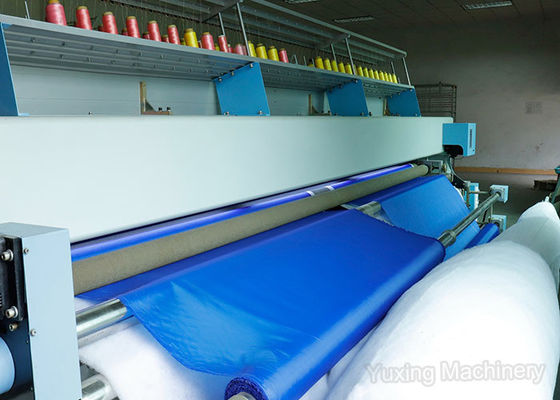

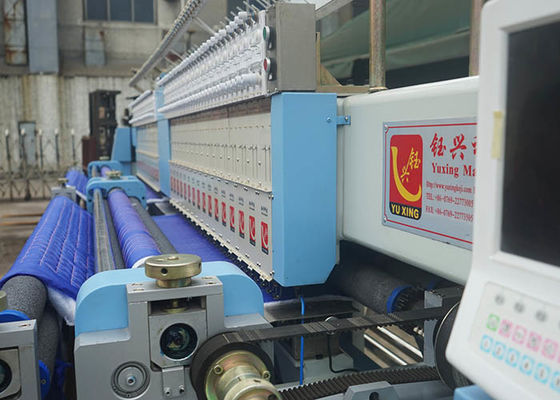

1000rpm Multi Head Embroidery Machine With Quilting Function 128 Inch Width
Description:
The multi head embroidery machine is quilting and embroidery processing at the same time. It has 33 heads, each head has 2 needles, each needle is single controlled to work independently.The machine can store about 1000 patterns and already exist 500 patterns in computer. X.Y, Z motors are driven by Japan Panasonic servo motor. It is widly used for high quality garments, quilts,blanket, quilt covers, pajamas, handbags, pillow case, car seat cover, etc.
Strength
Parameter:
| Model | YXH-128-50.8B |
| Size (mm) | 540cm*140cm*200cm |
| Gross Weight | 3 tons |
| Quilting and embroidery area | 3400mm (128 inch) width |
| Space between needles | 5.08cm |
| X-axis movement | 26cm |
| Head quantity | 33pcs |
| Machine type | single needle control |
| Material thickness | 20gsm-300gsm |
| Size of stitch | 0.15-12.7mm |
| Needle size | #14,#16 |
| Computer system | Dahao system |
| Voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 5kw |
Patterns
Package and loading
Method 1(standard package): plastic film, and fixed into containe with steel wire during transportation.
Method 2: Wooden case, clients need to bear the wooden case fee.
