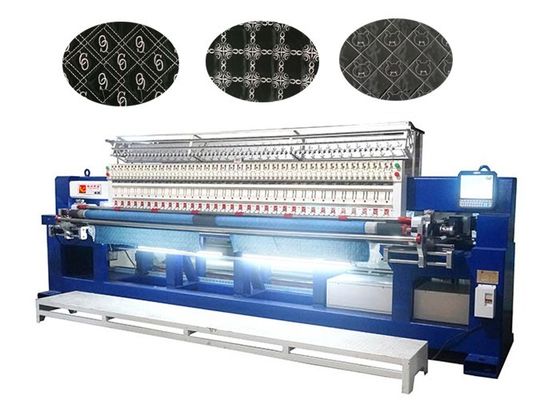

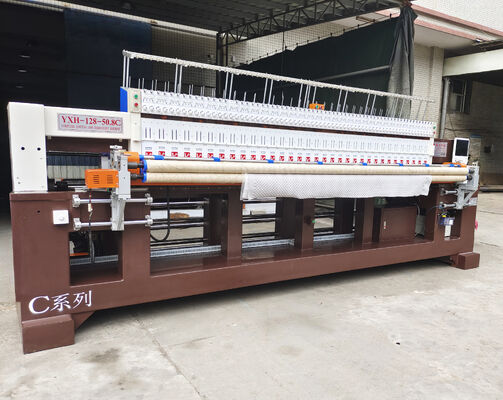

1200RPM 33 Heads Automatic Computerized Quilting Embroidery Machine

1200RPM 33 Heads Automatic Computerized Quilting Embroidery Machine

  • 1200RPM 33 Heads Automatic Computerized Quilting Embroidery Machine
  • 1200RPM 33 Heads Automatic Computerized Quilting Embroidery Machine
1200RPM 33 Heads Automatic Computerized Quilting Embroidery Machine
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: ISO9001,CE
Model Number: YXH-128-50.8C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 30 SETS/MONTH
Contact Now
Detailed Product Description
Product Name: Quilting Embroidery Machine Machine Size: 5400*1400*2000 MM
Head Quantity: 33 Needle: 66
Function: Auto Refueling Quilting Thickness: 20-300 GSM
Work Speed: 300-1200 RPM Work Width: 128 Inches
High Light:

128 Inches Quilting Embroidery Machine

,

1200RPM Quilting Embroidery Machine

,

3400mm Quilting Embroidery Machine

1200RPM 33 Heads Automatic Computerized Embroidery Quilting Sewing Machine



Computerized quilting embroidery machine Functions:

1. Adopting digital control program, quilting and embroidery work together.
2. Less maintenance, easy operation, precise processing.
3. 4 tension motors to control the fabric tension, it can keep fabric smooth by tension motor when fabric feed-in and feed-out.
4. X,Y, Z direction adopt the servo control system,to ensure the accuracy of embroidery.
5. Top tread and bottom thread broken, machine auto stop.
6. Auto-return for patch-up embroidery function.
7. Automatic lubrication system.
8. Easy head selection for quilting function.
9. Continuously quilting independent patterns function,jumping quilting function.
10. Tajima, Barudan, ZSK and SWF formats can be read.
11. 500 kinds designs available to choose, usb connecting with PC to input new designs.

Parameter:

Model YXH-128-50.8C
Dimension(L*W*H) 5400*1400*2000 MM
Gross weight 3000 kg
Rolling speed 300 -1200rpm
Quilting width 3400 mm
Needle space 50.8 mm
X-axis movement 254 mm
Head quantity 33 pieces
Needle quantity 66 pieces
Shuttle type Big rotating shuttle
Quilting thickness 20-300gsm
Stitch Binary system:0.15-12.7mm
Needle storage capacity 120,000
Pattern storage capacity 960
Needle type #14,#16
Principal drive Servo motor drive
Rated voltage(AC) 220V/60HZ or 380V/50HZ
Power 5000W

Applications:

garments like jacket, quilt, blanket, bedspread, handbag, pillow case, car mat etc.

1200RPM 33 Heads Automatic Computerized Quilting Embroidery Machine 01200RPM 33 Heads Automatic Computerized Quilting Embroidery Machine 1
