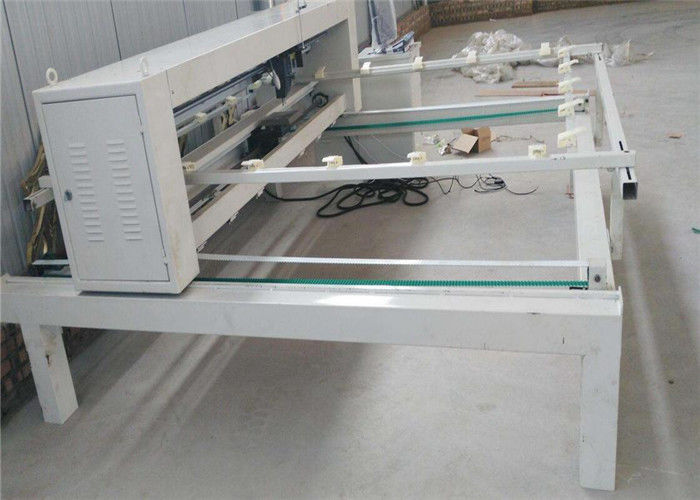

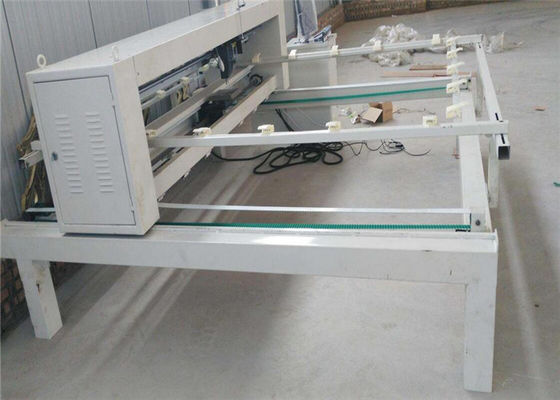

2500RPM Single Head Computer Guided Quilting Machine

MOQ:	1 SET
Price:	Negotiable
Standard Packaging:	Export packing
Delivery Period:	15 Days
Payment Method:	T/T, L/C
Supply Capacity:	30 SETS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

Model Number

YXD-26E

Machine Size:

4.9*3.6*1.3 M

Max Quilt Size:

2.6*2.8 M

Max Quilting Size:

2.4*2.6 M

Quilting Thickness:

1200 G/M2

Max Quilting Speed:

2500r/min

Stitch:

2-7 MM

Condition:

Power:

1.5kw

Highlight:

2500r/min Computer Guided Quilting Machine

Computerized Single Head Quilting Machine

2500RPM Computer Guided Quilting Machine

Product Description

Computerized Single Head Quilting Machine By Computer Guided Quilting Machine

Single needle quilting machine Introduction:

1> Optimize the overall configuration, choose sophisticated spline, imported linear guide rail, steel core of polyurethane timing belts, so that the aircraft is maintained at normal speed quilting 2000 RPM or more.

Suitable for quilting patterns on duvets, mattress pads, bedcovers, garments,sponges and leathers,etc.

2> DST,DSB,ZSK,SWF format can be read, compatible with different format pattern, can save 100,000 stitch pattern in machine computer all designs and program can read from USB.

3> Very high quilting precision: machine mechanical structure broke traditional working principle, realise no shaking when quilting,all movements is from machine head. It reached the topest level in quilting field.For difficult pattern like "heart" "small curve line" "several times quilting pattern", the machine can make sure the thread stay at the same point, no change of the needle stitch, very steady.

Main Technical Parameters:

Model	YXD-26E
Max Quilt Size	2.6*2.8
Max Needle Drop Size	2.4*2.6
Needle	MR18-21#
Quilting Thickness	1200g/m2
Quilting Speed	1000-2500RPM
Stitch Length	2-7mm
Machine Size(LWH)	4.93.61.3
Voltage	AC220/50Hz
Weight	1600kg
Power	1.5kw

Function:

1. Adopting the advanced process design

2. The new design control system.

3. New automatic refueling device.

4. Japanese Panasonic AC servo.

5. High quilting speed 2500 RPM.

6. High effciency: increases the movement speed by 30%

Product:

2500RPM Single Head Computer Guided Quilting Machine 0
