Continous High Speed Quilting Machine With Cutting Panel

Continous High Speed Quilting Machine With Cutting Panel

    • Continous High Speed Quilting Machine With Cutting Panel
    • Continous High Speed Quilting Machine With Cutting Panel
  • Continous High Speed Quilting Machine With Cutting Panel

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE
    Model Number: YXS-1A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 25 Days
    Payment Terms: T/T, L/C
    Supply Ability: 10 Sets/month
    Contact Now
    Detailed Product Description
    Condition: New Warranty: One Year
    After-sales Service Provided: Online Support,Video Technical Support Max Sewing Thickness: 60 CM
    Max Sewing Speed: 3000 R/MIN Quilting Area Width: 1.2-2.4M
    High Light:

    2500rpm High Speed Quilting Machine

    ,

    2.4m High Speed Quilting Machine

    ,

    60mm High Speed Quilting Machine

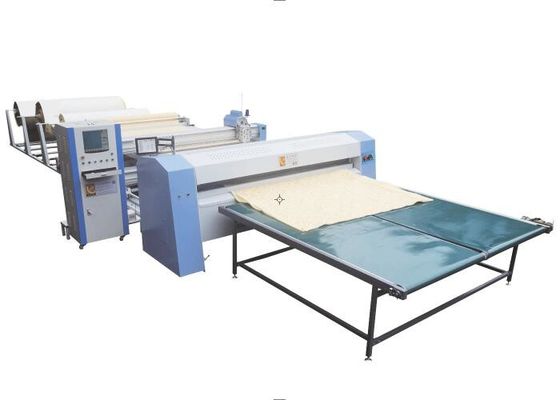

    Continous Type High Speed Single Needle Quilting Machine With Cutting Panel



    computer single needle quilting machine for quilt, mattress. continious quilting,



    1. can make big independent design.

    2. have automatic feed-in and cutting system.

    3. extremely large rotary shuttle, Japanese servo motor. Imported quilting head.

    4. computer can save 10000 patterns.



    Specification:

    Product Name Computer Single Needle Quilting Machine
    Model YXS-1A
    Size(L*W*H) 13.88*3.7*2m
    Weight 3500kg
    Quilting area width 1.2-2.4m
    Max.quilting thickness 60mm
    Max.quilting speed 2500rpm
    Motor Japanese Servo motor
    Air pressure 0.6Mpa
    Rated voltage 380V/50HZ
    Power 6.5KW


    Function:

    1. Extra large rotating shuttle, can effectively prevent thread broken. Arbitrary span quilting, detect thread broken without contact, click anywhere in screen for pattern compensation.

    2. Computer control, can save designs in disk for long time. Customer can add designs according to needs, simple and convenient.

    3. 360° independent quilting, one million memory system can in total save 10000 designs.

    4. Highly reliable,even stitches,pattern will not easily deformed.

    5. Capable of angle and pattern correction.

    6. Adopt Japanese servo motor for higher precision.

    7. Low noice, high speed, low vibration, steady running.

    8. Computer pattern-designing software,compatible with all kinds of quilting file and quilting system.

    9. Memory function when power off.

    10. Thin material adjustment function.

    11. Automatic material feeding,pulling and cutting device.

    12. Auto-sotp function, the machine is auto-stop when thread is broken.

    Continous High Speed Quilting Machine With Cutting Panel 0

    Continous High Speed Quilting Machine With Cutting Panel 1
