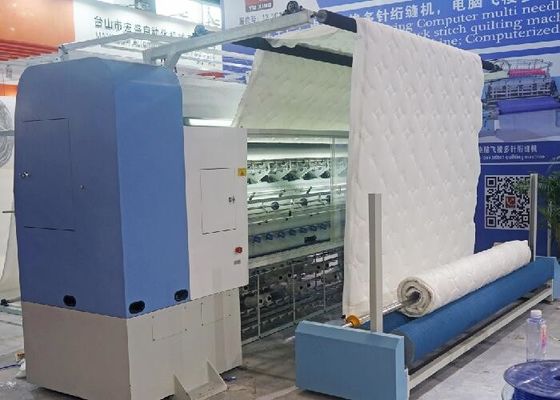

2.4 Meter Computer Multi Needle Chain Stitch Quilting Machine
  • name
  • name

2.4 Meter Computer Multi Needle Chain Stitch Quilting Machine

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Export packing
Delivery Period: 15 days
Payment Method: L/C, T/T
Supply Capacity: 25 SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE
Model Number
YXN-94-3C
Product Name:
Multi Needle Quilting Machine
Quilting Width:
2.4 Meter
Main Shaft Speed:
Maximum 900rpm
L*W*H:
5*1.6*2 Meters
Weight:
5 Tons
Sewing Thickness:
Maximum 8 Cm
Stitch Size:
2-8mm
Certification:
CE
Highlight:

900rpm Chain Stitch Quilting Machine

,

2.4m Chain Stitch Quilting Machine

,

2485mm Chain Stitch Quilting Machine

Product Description

Computerized Chain Stitch Multi Needle Quilting Machine Mattress Factory

Feature

  • Machine body and foot are reinforced. More stably on running.
  • Adjust speed by computer 500r-900 RPM, set different stitch length(2mm-8mm) from computer .
  • New upgraded computer system, compatible with embroidery file format(DST/DSB)
  • Pattern compensation function is an effective solution for looping pattern with thick material.
  • Auto stop sensor detect thread condition, when thread broken, machine automatically stop.
  • 180 degree and 360 degree random quilting patterns, and limited multi span for tack and jump designs.

Function:

1. advanced computerized control system ,improved the machine performance and speed ,increasing the output .

2. Quilting length can be set down ,it can automatically return to zero once finished.

3. A new generation computerized control system with accuracy quilting ,no need much modify the pattern .

4. The pattern with self developed drawing system,easier to learn and drawing with accurately .



Specification:



Product Name Computerized Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model YXN-94-3C(2"+3"/3"+3")
Size(L*W*H) 5000*1600*2000mm
Weight 5000kg
Quilting width 2485mm
Needle bar space 50.8,76.2,(2"+3");76.2,76.2(3"+3")
Quilting thickness ≤80mm
Rolling speed 600-900r/min
Output 10-200m/hour
Needle type 24/180,23/160,22/140,21/130
X-axis movement 410mm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 6.5KW

2.4 Meter Computer Multi Needle Chain Stitch Quilting Machine 0

Designs

2.4 Meter Computer Multi Needle Chain Stitch Quilting Machine 1



2.4 Meter Computer Multi Needle Chain Stitch Quilting Machine 2





Tags:

Automatic Quilting Machine,

Computer Quilting Machine,

Computerized Multi Needle Quilting Machine
