320CM Computerized Automated Shuttle Duvet Quilting Machine

320CM Computerized Automated Shuttle Duvet Quilting Machine

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Packed by plastic film
Delivery Period: 15 Days
Payment Method: T/T, L/C
Supply Capacity: 30 SETS/MONTH
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE
Model Number
YXS-128-2/3CS
Number Of Head:
Multi Needle
Warranty:
12 Months
Dimension(l*w*h):
550*150*170 CM
Quilting Width:
320 CM
Max Sewing Speed:
1000 R/MIN
Power:
7.5 KW
Weight:
5500 KG
After-sales Service Provided:
Online Video
Highlight:

320CM Duvet Quilting Machine

,

1000R/MIN Duvet Quilting Machine

,

7.5KW Duvet Quilting Machine

Product Description

320 CM Width Computerized Automated Shuttle Duvet Quilting Machine



Function:

1. Extreme precision with 360º intricated patterns.

2. Producing many kinds of sewing patterns such as: panel quilts with few needles • patterns with filled areas • jump patterns• fine embroidery, signatures, trademark, etc.

3. Unique design of upper creel makes it very easy to exchange upper thread. The operator can finish it conveniently in front of the machine without any climbing equipment.

4. Unique adjustable (0~50mm) active roll feeding system can adjust ideally materials of different thickness and allow perfect sewing without skipped stitches on very thick (or very thin) materials and exotic “puff” effects without destroying materials.

5. Unique design of shuttle holder makes every stitch more precise and reliable.

6. Unique automatic tension-damp system on passive feeding (adjustable) ensures perfectly the more equal & reliable material feeding and more convenient operation.

7. Unique “dot” presser system allows the reduction of resistance on presser-plate when quilting very thick materials and makes every stitch trace clear and compact with distinct third dimension (without loose thread).

8. Up-to-date overall design has not only beautiful appearance but also perfect safeguard, which makes the operation more safe and reliable.

9. It allows the cloth to move forward and backward at low or high speed.

10. The photoelectric thread break detector has the features of high sensitivity (optional device).



Model YXS-128-2/3CS
Dimension(L×W×H) 550*150*170
Quantity of needle bar 3
Quilting width 320
Space between needle rows 76.2(3') / 152.4(3'+3')
Space between needles 25.4
X-axis movement dispacent 254
Thickness of quilting ≤50
Stitch length 2~8
Speed of operation(m/H) 10~210
Model of needle 16#,19#
Speed of main shaft(RPM) 500~1000
Total power required 7.5KW
Voltage

380V/50HZ

220V/60HZ

Gross weight 5500kg

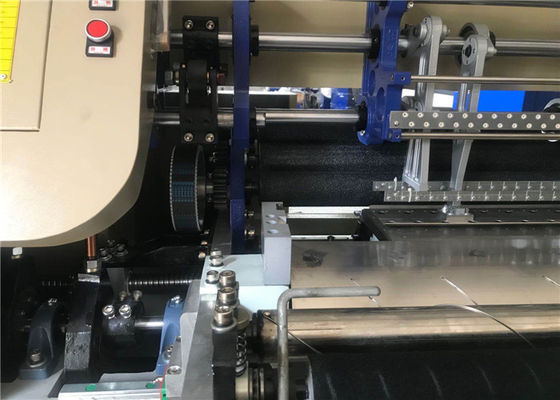

320CM Computerized Automated Shuttle Duvet Quilting Machine 0

Appropriate to: duvets, quilts, bedding, sleeping-bags, nightgown, and house adornments.

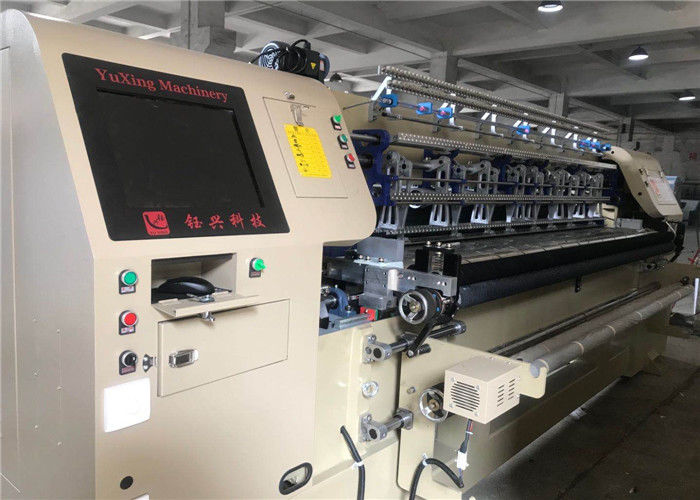

320CM Computerized Automated Shuttle Duvet Quilting Machine 1
