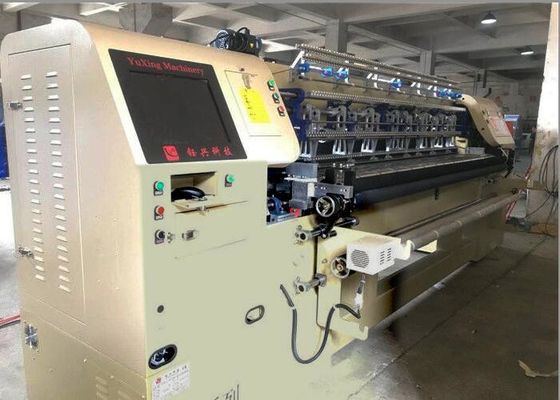

Computerized Lock Stitch Quilting Machine With Japan Bearing

Computerized Lock Stitch Quilting Machine With Japan Bearing

  • Computerized Lock Stitch Quilting Machine With Japan Bearing
  • Computerized Lock Stitch Quilting Machine With Japan Bearing
Computerized Lock Stitch Quilting Machine With Japan Bearing
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE
Model Number: YXS-94-3CS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 30 SETS/MONTH
Contact Now
Detailed Product Description
Dimension(l*w*h): 4600*1500*1700 MM Quilting Width: 94 Inches
Needle Space: 25.4 MM X-axis Movement: 254 MM
Rolling Speed: 500RPM -1000 RPM Output: 10-210 M/H
Warranty: ONE YEAR After-sales Service Provided: Online Technical Support
High Light:

Computerized Lock Stitch Quilting Machine

,

280M/H Lock Stitch Quilting Machine

,

1000RPM Lock Stitch Quilting Machine

Heavy Duty Computerized Lock Stitch Shuttle Quilting Machine With Japan Bearing



Quilting Machine component: use in Delta transducer,Japan bearings, Korean shuttles and German needles.



Specification:

Product Name High Speed Computerized Lock Stitch (Shuttle) Multi-needle Quilting Machine
Model YXS-94-3CS
Size(L*W*H) 4.6*1.5*1.7m
Weight 4600kg
Quilting width 2.45m
Needle bar space 3CS 3''+3''(152.4mm)
Quilting thickness ≤5cm
Rolling speed 500-1000RPM
Output 0-210m/hour
Needle type #16,#19
X-axis movement 254mm
Needle space 25.4mm
Stitch 2mm-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 6.5KW



Function

1. Pattern editing system is easy to learn.

2. Have the ringing notice when start machine.

3. The infrared system, make your operation more safe than before.

4. Principal axis uses the frequency conversion device.

5. Saddling rack and rollers are driven by servo equipment.

6. Adopt the advanced computer and mechanistic technology.

7. Can do 360° random quilting and limitless multi-span and independent quilting.

8. The compensation function, an effective solution for looping pattern with thick material.

9. Needle bar frame structure is more firm and durable so that the cost of maintenance is cheaper.

10. Adjust speed by the computer system, the speed can reach 1000r/min, the stitch can be set between 2mm-8mm.

11. Needle bars running with needle bar frames, do not need to add extra lube, avoid the materials be soiled by lube.

12. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when the thread is broken.

Computerized Lock Stitch Quilting Machine With Japan Bearing 0Computerized Lock Stitch Quilting Machine With Japan Bearing 1

Pattern:

Computerized Lock Stitch Quilting Machine With Japan Bearing 2
