Automatic Sewing Lockstitch Computerized Quilting Machine

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Export packing
Delivery Period: 15 Days
Payment Method: T/T, L/C
Supply Capacity: 30 SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE, ISO9001
Model Number
YXS-96-3D
Warranty:
365 Day
Max Sewing Speed:
1200 R/MIN
Dimension(l*w*h):
473*175*170 CM
Weight:
5700 KGS
After-sales Service Provided:
Online Video Call
Quilting Width:
245 CM
Voltage:
380V Or 220V
Number Of Head:
Multi Needle
Highlight:

1200r/min Computerized Quilting Machine

,

245CM Computerized Quilting Machine

,

240m/h Quilting Machine

Product Description

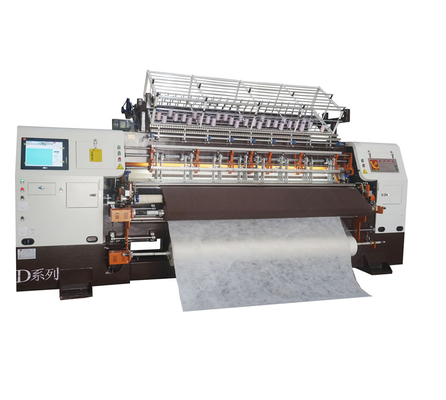

Automatic Sewing Machine Lockstitch Computerized Quilting Machine



Function:

1. Adopt the advanced mechanistic technology and computer.

2. Needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled by lube.

3. Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.

4. Saddling rack and roller are driven by servo equipment.

5. Principal axis uses the frequency conversion device.

6. Can adjust speed by computer, the max speed can reach 1200r/min,the stitch can be set between 2mm to 8mm.

7. 360°random quilting and limitless multi-span and independent quilting.

8. The compensation function, an effective solution for looping pattern with thick material.

9. Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.

10. The infrared system ,make your operate more safe.

11. Pattern editing is easy to learn.

12. Ringing notice when start machine.



Model YXS-96-3D
Dimension(L×W×H) 473*175*170 CM
Quantity of needle bar 3
Quilting width 2.45 m
Space between needle rows 152.4(3'+3')
Space between needles 25.4mm
X-axis movement dispacent 254mm
Thickness of quilting ≤50mm
Stitch length 2~8mm
Speed of operation 20~240m/h
Model of needle 16#,19#
Speed of main shaft 500~1200 R/min
Total power required 6.5KW
Voltage

380V/50HZ

220V/60HZ
Gross weight 5700kgs





Appropriate to: comforters, quilts, bags, sleeping-bags, nightgowns, covers and house adornments.

Automatic Sewing Lockstitch Computerized Quilting Machine 0Automatic Sewing Lockstitch Computerized Quilting Machine 1
