| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-76-3CS |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 SETS/MONTH |
| Dimension(l*w*h): | 4100*1500*1700 MM | Quilting Width: | 76 Inches |
|---|---|---|---|
| Needle Space: | 25.4 MM | X-axis Movement: | 204 MM |
| Rolling Speed: | 500-1000 R/MIN | Output: | 10-210 M/H |
| Warranty: | 365 Day | After-sales Service Provided: | Video Support |
| Highlight: | 1950mm Shuttle Quilting Machine,76 Inches Shuttle Quilting Machine,280m/h Shuttle Quilting Machine |
||

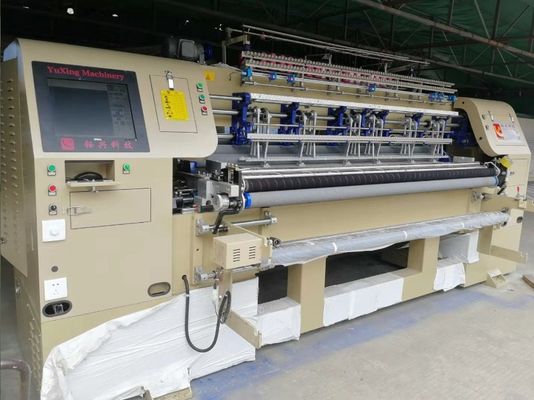

Hi Speed Mechanical Lockstitch Shuttle Quilting Machine With Rack And Rollers
Quilting Machine component: use in Delta transducer,Japan bearings, Korean shuttles and German needles.
Quilting Machine Function:
1. The pattern editing is easy to learn.
2. Have the ringing notice when start machine.
3. The infrared system, make your operation more safe.
4. Principal axis uses the frequency conversion device.
5. Saddling rack and rollers are driven by servo equipment.
6. Have adopt the advanced computer and mechanistic technology.
7. Can do 360° random quilting and limitless multi-span and independent quilting.
8. Compensation function, an effective solution for looping pattern with thick material.
9. Needle bar frame structure is more firm and durable so that the cost of maintenance is cheaper.
10. Adjust speed by the computer system, speed can reach 1000r/min, stitch can be set between 2mm-8mm.
11. Needle bars running with needle bar frames, do not need to add extra lube, avoid the materials be soiled by lube.
12. Advanced and practical testing upper thread broken techniques, the machine will auto-stop when the thread broken.
Specification:
| Product Name | High Speed Computerized Lock Stitch (Shuttle) Multi-needle Quilting Machine |
| Model | YXS-76-3CS |
| Size(L*W*H) | 4100*1500*1700mm |
| Weight | 4000kg |
| Quilting width | 1950mm |
| Needle bar space | 3CS 3''+3''(152.4mm) |
| Quilting thickness | ≤5cm |
| Rolling speed | 500-1000 rpm |
| Output | 10-210m/hour |
| Needle type | #16,#19 |
| X-axis movement | 254mm |
| Needle space | 25.4mm |
| Stitch | 2-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 5KW |
Pattern:
