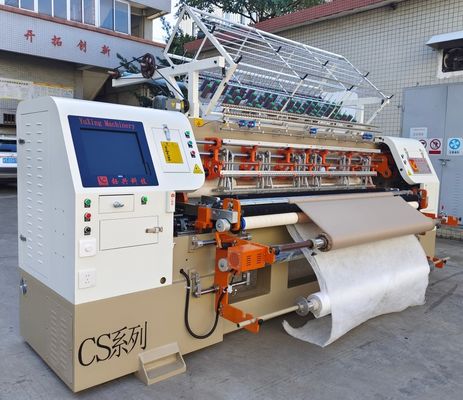

1000RPM Multi Needle Shuttle Quilting Machine For Quilts

1000RPM Multi Needle Shuttle Quilting Machine For Quilts

    • 1000RPM Multi Needle Shuttle Quilting Machine For Quilts
    • 1000RPM Multi Needle Shuttle Quilting Machine For Quilts
  • 1000RPM Multi Needle Shuttle Quilting Machine For Quilts

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE ISO9001
    Model Number: YXS-82-2/3CS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 15 days
    Payment Terms: L/C, T/T
    Supply Ability: 20 SETS/MONTH
    Contact Now
    Detailed Product Description
    Size:L*W*H: 4600*1500*1700MM Weight: 4600KG
    Quilting Width: 2100 MM Needle Space: 25.4 MM
    Stitch: 2-8 MM Rolling Speed: 500-1000 R/MIN
    Condition: New Warranty: 12 Month
    High Light:

    1000RPM Shuttle Quilting Machine

    ,

    2100MM Shuttle Quilting Machine

    ,

    210m/h Shuttle Quilting Machine

    1000RPM computerized multi-needle shuttle quilting machine for quilts



    Quilting Machine Appropriate to: quilts, comforter, bag, sleeping-bag, nightgown, and house adornments.



    Specification:

    Product Name High Speed Computerized Lock Stitch (Shuttle) Multi-needle Quilting Machine
    Model YXS-82-2/3CS
    Size(L*W*H) 4100*1500*1700mm
    Weight 4000kg
    Quilting width 2100mm
    Needle bar space 3''(76.2mm)/3”+3''(152.4mm)
    Quilting thickness ≤50mm
    Rolling speed 500-1000r/min
    Output 10-210m/hour
    Needle type #16,#19
    X-axis movement 204mm
    Needle space 25.4mm
    Stitch 2-8mm
    Rated voltage(AC) 380V/50HZ,/220V/60HZ
    Power 5KW



    1000RPM Multi Needle Shuttle Quilting Machine For Quilts 01000RPM Multi Needle Shuttle Quilting Machine For Quilts 1

    Function:

    1. The upgraded computer control system and mechanical manufacturing process technology.

    2. The needle bar running with needle bar frame, no need to add extra lube and avoid the materials be soiled by lube.

    3. Needle bar frame structure is more firm and durable, so that the cost of maintenance is cheaper.

    4. Both the saddle frames and the rollers are imported servo drive equipment,

    5. Adopt sadding rack guide rail, steady running, patterns are more precise, lower thread break rate.

    6. Principal axis adopt the frequency conversion device.

    7. Adjust speed by computer and the speed can reach 500-1000r/min, the stitch can be set between 2-8mm.

    8. Adopt the mouse make patterns directly and compatible with embroidery file format(DST/DSB)

    9. 360°random quilting and limitless multi-span and independent quilting

    10. The compensation function, an effective solution for looping pattern with thick material.

    11. Advanced and practical testing upper thread broken techniques, the machine will auto-stop when thread is broken.

    12. The fuselage of beam is reinforced and the machine runs more stably.

    13. Adopt automatic refueling system to extend bearing life.

    Pattern show

    1000RPM Multi Needle Shuttle Quilting Machine For Quilts 2
