| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | ISO9001,CE |
| Model Number: | YXH-128-50.8C |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 SETS/MONTH |
| Product Name: | Automatic Computer Quilting Machine | Machine Size: | 5400*1400*2000 MM |
|---|---|---|---|
| Head Quantity: | 33 | Needle: | 66 |
| X-axis Movement: | 254 MM | Quilting Thickness: | 20-300 GSM |
| Rolling Speed: | 300-1200 R/MIN | Warranty: | 1 Year |
| Highlight: | 1200RPM Quilting Embroidery Machine,300GSM Quilting Embroidery Machine,3400mm Quilting Embroidery Machine |
||

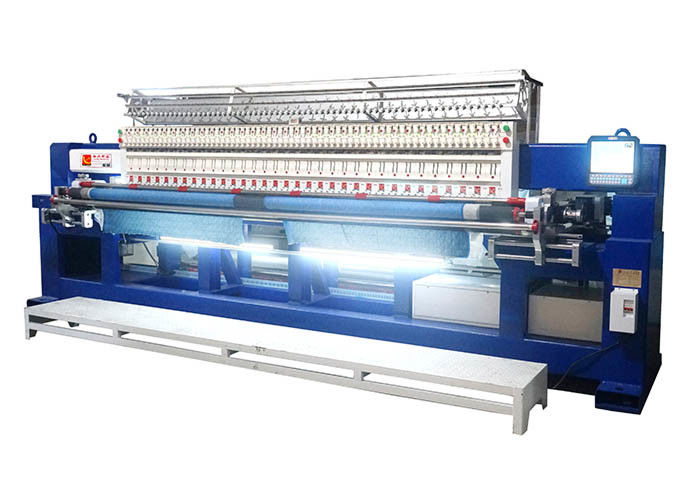

1200RPM Computerized Quilting Embroidery Machine For Blankets
Quilting embroidery machine Description
The Quilting embroidery machine is a kind of textile machinery used for quilting and embroidery various patterns on the surface of mattresses, bedspreads and quilts, car mat, etc. The maximum speed can reach 1200rpm, use Panasonic servo motors. 500 patterns can be chosen. Operation easy, maintenance few.
Parameter:
| Model | YXH-128-50.8C |
| Size(L*W*H) | 5400*1400*2000mm |
| Weight | 3000kg |
| Rolling speed | 300-1200r/min |
| Quilting width | 3400mm |
| Needle space | 50.8 |
| X-axis movement | 254 |
| Head quantity | 33 pieces |
| Needle quantity | 66 pieces |
| Rotating shuttle | Big rotating shuttle |
| Quilting thickness | 20-600g |
| Stitch | Binary system:0.15-12.7mm |
| Needle storage capacity | 120,000 |
| Pattern storage capacity | 960 |
| Needle type | #14,#16 |
| Principal drive | Servo motor drive |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 5KW |
Functions:
1. Quilting and embroidery is completed together.
2. Y axis is driven by roller system.
3. Keep fabric smooth by tension motor when fabric feed-in and feed-out.
4. X,Y,Z direction adopt the servo control system,to ensure the accuracy of embroidery.
5. Auto-stop device.
6. Auto-return for patch-up embroidery function.
7. Automatic lubrication system.
8. Easy head selection for quilting function.
9. Continuously quilting independent patterns function,jumping quilting function.
10. Tajima, Barudan, ZSK and SWF formats can be read.
11. The unique mechanical structure can reduce the vibration,thereby its better to control the vibration and reduce noise.
Applications:garments like jacket, quilts,blanket, bedspread, handbags, pillow case, car mat, etc.
