| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-64-2/3D |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packed by plastic film |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 SETS/MONTH |
| Dimension(l*w*h): | 393.5*175*170 CM | Quilting Width: | 170 CM |
|---|---|---|---|
| Max Sewing Thickness: | 5 CM | Max Sewing Speed: | 1200 R/MIN |
| Power: | 4 KW | Weight: | 4.8 T |
| Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 1200r/min Computerized Quilting Machine,1700mm Computerized Quilting Machine,4KW Quilting Machine |
||

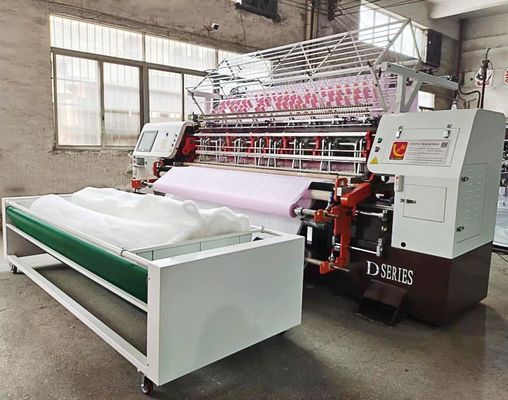

3 Phase Automated Computerized Multi-Needle Carpets Quilting Machine
Computerized Quilting Machine Function:
1. Quilting machines extreme precision with 360º intricated patterns.
2. It can quilting many kinds of patterns such as: panel quilts with few needles • patterns with filled areas • fine embroidery, signatures, trademark, etc.
3. Unique design of upper creel makes it easy to exchange upper thread. The operator can finish it conveniently in front of the machine without any climbing equipment.
4. Machine could adjustable (0~50mm) active roll feeding system can adjust ideally materials of different thickness and allow perfect sewing without skipped stitches on very thick (or very thin) materials and exotic “puff” effects without destroying materials.
5. Unique design of shuttle holder makes every stitch more precise and reliable.
6. Unique automatic tension-damp system on passive feeding (adjustable) ensures perfectly the more equal & reliable material feeding and more convenient operation.
7. Unique “dot” presser system allows the reduction of resistance on presser-plate when quilting very thick materials and makes every stitch trace clear and compact with distinct third dimension (without loose thread).
8. Up-to-date overall design has not only beautiful appearance but also perfect safeguard, which makes the operation more safe and reliable.
9. It allows the cloth to move forward and backward at low or high speed.
10. The photoelectric thread break detector has the features of high sensitivity (optional device).
Oil lubrication system
| Model | YXS-64-2/3D |
| Dimension(L×W×H) | 3935*1750*1700 |
| Quantity of needle bar | 2/3 |
| Quilting width | 1700 |
| Space between needle rows | 76.2(3') / 152.4(3'+3') |
| Space between needles | 25.4 |
| X-axis movement dispacent | 204 |
| Thickness of quilting | ≤50 |
| Stitch length | 2~8 |
| Speed of operation(m/H) | 20~240 |
| Model of needle | 16#,19# |
| Speed of main shaft(RPM) | 500~1200 |
| Total power required | 4 KW |
| Voltage |
380V/50HZ 220V/60HZ |
| Gross weight | 4800kg |
Appropriate to: garments, jackets, sofa, cushions etc.
