160cm*2 Double Width Multi Head Embroidery Quilting Machine For Jackets

MOQ:	1 Sets
Price:	Negotiable
Standard Packaging:	Export packing
Delivery Period:	20 Days
Payment Method:	T/T, L/C
Supply Capacity:	30 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

Model Number

YXH-64-H-50.8B

Work Width:

64"+64"

Main Shaft Speed:

1000rpm

Heads Quantity:

Weight:

3500KG

Size:

5800*1400*2000

Type:

Quilting Embroidery

Highlight:

160cm*2 Multi Head Embroidery Machine

1000rpm Multi Head Embroidery Machine

3.4m Multi Head Embroidery Machine

Product Description

Double Width Multi Needle Embroidery Quilter For Jackets 160cm*2

Product description

This kind embroidery quilter is a little different from the common type, the rolling part is separated in the middle, which can make sure the roller pulling force even. With this design, the machine can process higher precision production. It is more suggested for high end jackets, bags, car interior, etc.

Strength

Each needle controlled by one switch.
Quilting and embroidery processing synchronously.
Automatically return to patch up pattern.
Auto refueling system to prolong machine life span.
Compatible to other common embroidery pattern in market(Tajima, Barudan, ZSK, SWF).
X.Y, Z motors are driven by imported servo motor.
When thread breaks, machine will auto stop.
The unique mechanical structure help tp reduce the vibration and noise.

Parameter:

Model	YXH-64-H-50.8B
Dimension	5800mm1400mm2000mm
Gross Weight	3500kg
Work width	1.6m+1.6m
Space between needle	2 inch
X-stroke	254mm
Quantity of heads	32pcs
Machine type	single needle control
Quilting thickness (gsm)	20-600
Length of stitch	0.15-12.7mm
Needle type	#14,#16
Computer system	Dahao system
Power	5kw
Voltage(AC)	380V/50HZ,/220V/60HZ

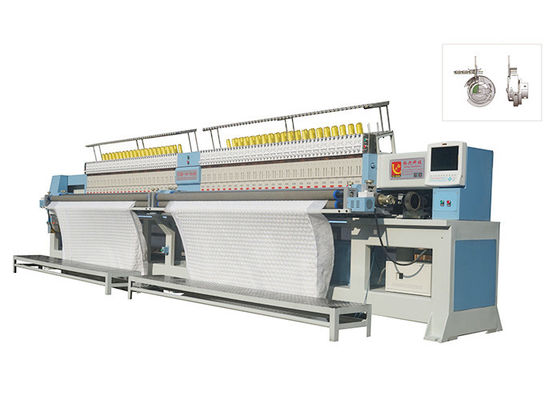

160cm*2 Double Width Multi Head Embroidery Quilting Machine For Jackets 0

Package and loading

Standard package: plastic film, and fixed into containe with steel wire to protect machine from shaking during transportation.

Optional package: wooden case, clients need to bear the wooden case cost.

160cm*2 Double Width Multi Head Embroidery Quilting Machine For Jackets 1
