| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | ISO9001,CE |
| Model Number: | YXH-128-50.8C |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 SETS/MONTH |
| Product Name: | Quilting Embroidery Machine | Machine Size: | 5.4*1.4*2 M |
|---|---|---|---|
| Head Quantity: | 33 Pieces | Needle: | 66 Pieces |
| Function: | Auto Refueling | Max Quilting Thickness: | 300 GSM |
| Max Work Speed: | 1200 RPM | Work Width: | 2.45 M |
| High Light: | 1200rpm Multifunctional Embroidery Machine,Garments Quilting And Embroidery Machine,Quilting And Embroidery Machine |
||

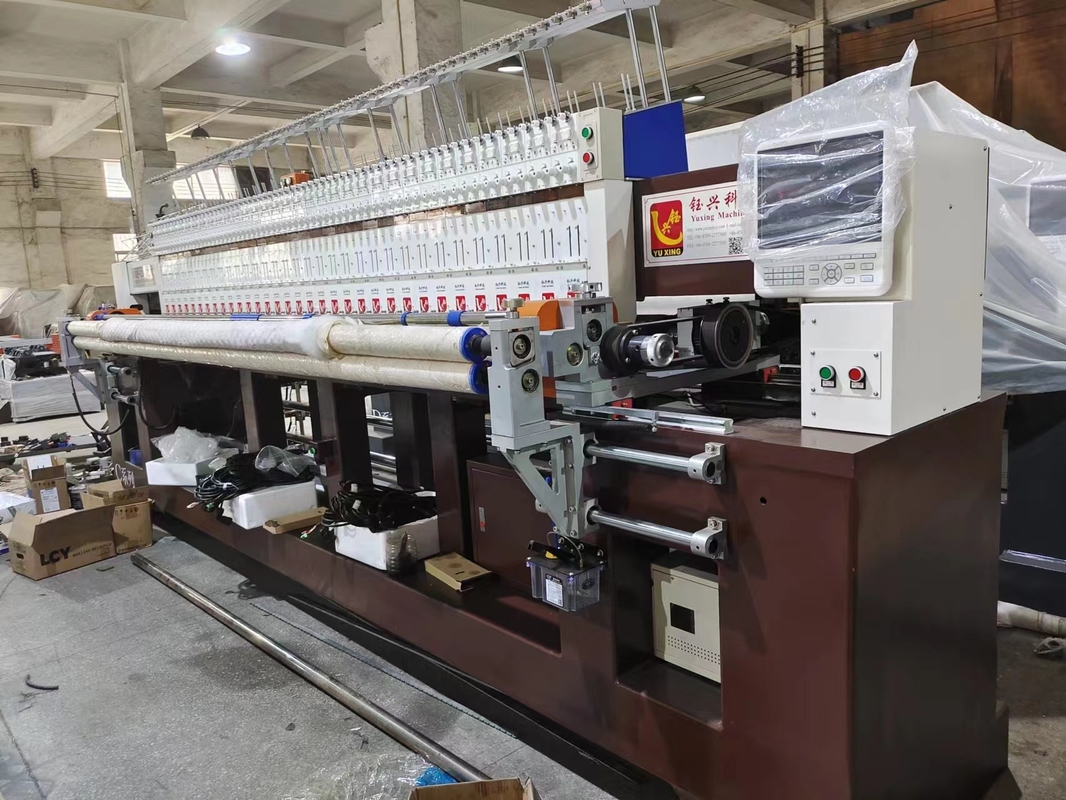

High Speed Computerized Quilting and Embroidery Machine
Computerized quilting and embroidery machine
Functions:
1. Adopting digital control program, quilting and embroidery work together.
2. Less maintenance, easy operation, precise processing.
3. 4 tension motors can control the fabric tension, it can control fabric tension when fabric feed-in and feed-out.
4. When upper tread and bottom thread broken, machine will auto stop..
5. Auto-return for patch-up embroidery function.
6. X,Y, Z direction adopt Panasoic servo control system,to ensure the accuracy of embroidery.
7. Automatic lubrication device, prolong machine parts life-span.
8. Easy head selection for quilting function.
9. Continuously quilting independent patterns function,jumping quilting function.
10.It can read Tajima, Barudan, ZSK and SWF formats.
11. More than 500 Patterns save in computer to choose, usb can connect with PC to input new designs.
Applications:
jackets, quilts, blankets, bedspreads, handbags, pillow cases, car mats etc.
Parameter:
| Model | YXH-128-50.8C |
| Size(L*W*H) | 540cm*140cm*200cm |
| Gross weight | 4500kgs |
| Rolling speed | 300 -1200rpm |
| Quilting width | 2.45m |
| Needle space | 50.8 mm |
| X-axis movement | 254 mm |
| Head quantity | 33 pieces |
| Needle quantity | 66 pieces |
| Shuttle type | Big rotating shuttle |
| Quilting thickness | 20-300gsm |
| Stitch length | Binary system:0.15-12.7mm |
| Needle storage capacity | 120,000 |
| Pattern storage capacity | 960 |
| Needle size | #14,#16 |
| Principal drive | Servo motor |
| Rated voltage(AC) | 220V/60HZ or 380V/50HZ |
| Power | 6KW |
