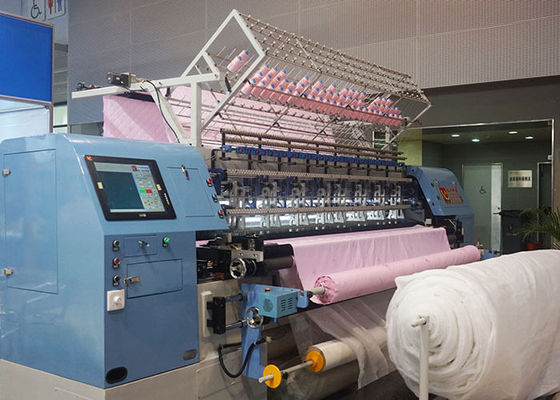

Commercial 800RPM 2M Computerized Quilting Machine For Jacket

Commercial 800RPM 2M Computerized Quilting Machine For Jacket

    • Commercial 800RPM 2M Computerized Quilting Machine For Jacket
    • Commercial 800RPM 2M Computerized Quilting Machine For Jacket
  • Commercial 800RPM 2M Computerized Quilting Machine For Jacket

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE
    Model Number: YXS-76-2/3C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Packed by plastic film
    Delivery Time: 15 Days
    Payment Terms: T/T, L/C
    Supply Ability: 30 SETS/MONTH
    Contact Now
    Detailed Product Description
    Product Name: Computer Quilting Machine Warranty: 1 Year
    Dimension(l*w*h): 410*150*170 CM Quilting Width: 2 M
    Sewing Speed: 500-800 RPM Power: 5 KW
    Weight: 4000 KG After-sales Service Provided: Online Service
    High Light:

    2M Computerized Quilting Machine

    ,

    800RPM Computerized Quilting Machine

    ,

    1950mm Computerized Quilting Machine

    Commercial Computerized 2 M Sewing Width Quilting Machine For Jacket



    Computerized Quilting Machine Function:

    1. Adopt the advanced computer and mechanistic technology.

    2. Needle bars running with needle bar frame, no need to add extra lube, avoid the materials be soiled by lube.

    3. Needle bar frame structure is more firm and durable, the cost of maintenance is more cheaper.

    4. Saddling racks and rollers are driven by servo equipment.

    5. Principal axis uses the frequency conversion device.

    6. Adjust speed by computer system, the speed can reach 800RPM,the stitch can be set between 2-6mm.

    7. 360°random quilting and limitless multi-span and independent quilting.

    8. Compensation function,an effective solution for looping pattern with thick material.

    9. Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.

    10. The infrared system ,make your operate more safe.

    11. The pattern editing is easy to learn.

    12. Machine have ringing notice when start machine.



    Model YXS-76-2/3C
    Dimension(L×W×H) 4100*1500*1700
    Quantity of needle bar 2/ 3
    Quilting width 1950
    Space between needle rows 76.2(3')/ 152.4(3'+3')
    Space between needles 25.4
    X-axis movement dispacent 204
    Thickness of quilting ≤50
    Stitch length 2~6
    Speed of operation(m/H) 20~195
    Model of needle 16#,19#
    Speed of main shaft(RPM) 500~800
    Total power required 5KW
    Voltage

    380V/50HZ

    220V/60HZ

    Gross weight 4000kg



    Appropriate to:jackets, garments, duvets, comforters, quilts, bag, sleeping-bags, nightgown, and house adornments.
