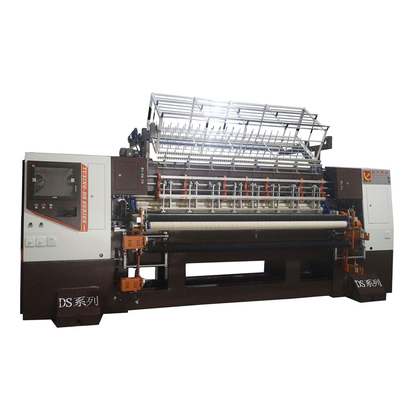

96 Inches Computerized Multi Needle Shuttle Quilting Machine

96 Inches Computerized Multi Needle Shuttle Quilting Machine

  • 96 Inches Computerized Multi Needle Shuttle Quilting Machine
  • 96 Inches Computerized Multi Needle Shuttle Quilting Machine
96 Inches Computerized Multi Needle Shuttle Quilting Machine
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXS-96-3E
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 30 SETS/MONTH
Contact Now
Detailed Product Description
Dimension(l*w*h): 4730*1750*1700 MM Quilting Width: 96 Inches
Needle Space: 25.4 MM X-axis Movement: 254 MM
Rolling Speed: 500RPM -1400 RPM Output: 10-280 M/H
Warranty: ONE YEAR After-sales Service Provided: Video Technical Support
High Light:

96 Inches Shuttle Quilting Machine

,

Computerized Quilting Machine

,

280M/H Quilting Machine

96 Inches Computerized Lock Stitch Multi Needle Shuttle Quilting Machine



Quilting Machine component: use in Delta transducer,Japan bearing,Korean shuttle and German needles.



Specification:

Product Name High Speed Computerized Lock Stitch (Shuttle) Multi-needle Quilting Machine
Model YXS-96-3E
Size(L*W*H) 4730*1750*1700mm
Weight 6800kg
Quilting width 2450mm
Needle bar space 3E3''+3''(152.4mm)
Quilting thickness ≤50mm
Rolling speed 500-1400r/min
Output 0-280m/hour
Needle type #16,#19
X-axis movement 254mm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 7.5KW



Function

1. Pattern editing is easy to learn.

2. Have the ringing notice when start machine.

3. The infrared system, make your operation more safe.

4. Principal axis uses the frequency conversion device.

5. Saddling rack and rollers are driven by servo equipment.

6. Adopt the advanced computer and mechanistic technology.

7. Can 360° random quilting and limitless multi-span and independent quilting.

8. Compensation function, an effective solution for looping pattern with thick material.

9. Needle bar frame structure is more firm and durable so that the cost of maintenance is cheaper.

10. Adjust speed by the computer system, the speed can reach 1400r/min, the stitch can be set between 2-8 mm.

11. Needle bars running with needle bar frame, do not need to add extra lube, avoid the materials be soiled by lube.

12. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when the thread is broken.



Pattern:

96 Inches Computerized Multi Needle Shuttle Quilting Machine 0

96 Inches Computerized Multi Needle Shuttle Quilting Machine 1
