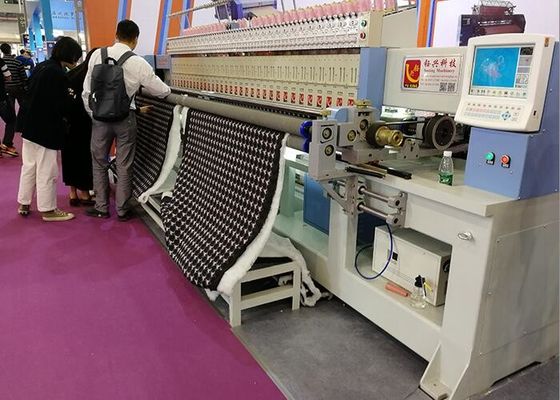

Multi Needle Quilting Embroidery Machine For Quilt / Bedspread

Multi Needle Quilting Embroidery Machine For Quilt / Bedspread

    • Multi Needle Quilting Embroidery Machine For Quilt / Bedspread
    • Multi Needle Quilting Embroidery Machine For Quilt / Bedspread
  • Multi Needle Quilting Embroidery Machine For Quilt / Bedspread

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE
    Model Number: YXH-128-50.8B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 20 Days
    Payment Terms: T/T, L/C
    Supply Ability: 30 Sets/month
    Contact Now
    Detailed Product Description
    Machine Type: Quilting Embroidery Machine Dimension: 540cm*1400cm*200cm
    Work Width: 128 Inch Head Qty: 33pcs
    Work Speed: 1000rpm Quilting Thickness: 20-600gsm
    High Light:

    33pcs heads Quilting Embroidery Machine

    ,

    600gsm Quilting Embroidery Machine

    ,

    3.35m Quilting Embroidery Machine

    Computerized Multi Needle Embroidery Quilting Machine For Quilt / Bedspread

    Strength:

    Easy operation, less maintenance, save labor, low vibration, precise pattern. This multi needle embroidery quilting machine is quilting and embroidery working together. It has hundreds of embroidery designs available.  The machine is widly used for garments, quilts,blanket, bedspread, handbags, pillow case, car seat , foot pad , car pad, etc.

    Functions:
    1.Quilting and embroidery finished at the same time.
    2. Y direction adopts roller transmission.
    3.  4 tension motors controlls fabric pulling tension depends on different kind of fabric. It can get precise quilting effect.
    4. X,Y, Z direction adopt the servo control system,to ensure the accuracy of embroidery.
    5. Thread dectection. When thread broken or used up, machine stop automatically.
    6. The quilting embroidery machine auto-returns to patch-up the unfinished embroidery designs.
    7. The automatic refueling system can prolong the machine's life span.
    8. Each needle is controlled independently, easy to adjust the design space or change different design effect.
    9. 360 degree and 180 degree continuously quilting, multi span.
    10. Common embroidery format are compatible..
    11. The unique mechanical structure can reduce the vibration and provide stably sewing effect.


    Parameter:

    Product Name Computer Quilting and Embroidery Machine
    Model YXH-128-50.8B
    Dimension (L*W*H) 5400*1400*2000mm
    Gross Weight 3000 kilo gram
    Quilting width 3.4 meter
    Needle space  2 inch
    X-stroke 254mm
    Head number 33pcs
    Needle number 66pcs
    Shuttle size Big rotating shuttle
    Sewing thickness 20gsm-600gsm
    Stitch size 0.15-12.7mm
    Needle suggested #14,#16
    Principal drive type Servo motor drive
    Voltage(AC) 3 phase 380V/50HZ,/220V/60HZ
    Power  5000W


    Machine scheme

    Multi Needle Quilting Embroidery Machine For Quilt / Bedspread 0


    Guaranty and Installation:

    1.Give extra free spare part when ship with the machine.
    2. Offer manual, pattern book, installation video and step by step instruction if meet problems.
    3. If need field installation or repairing machine, client should bear tickets, food, hotel and labor cost $100/day.

    4. Within a year if part is broken, the supplier can replace part for free. Damage resulting from buyer's wrong operation / actions without supplier's guide / force majure is not in the scope of the warranty. (note bobbin case, bobbin, needles, lamp is not in the scope of the warranty)



    Multi Needle Quilting Embroidery Machine For Quilt / Bedspread 1
    Multi Needle Quilting Embroidery Machine For Quilt / Bedspread 2
