| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | ISO9001,CE |
| Model Number: | YXH-128-50.8C |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 SETS/MONTH |
| Product Name: | Quilting Embroidery Machine | Machine Size: | 5.4*1.4*2 M |
|---|---|---|---|
| Head Quantity: | 33 Pieces | Needle: | 66 Pieces |
| Function: | Auto Refueling | Max Quilting Thickness: | 300 GSM |
| Max Work Speed: | 1200 RPM | Work Width: | 2.45 M |
| High Light: | 94 Inch Embroidery Quilting Machine,Quilting Embroidery Machine For Bedcover,Quilting Embroidery Machine For Bedspread |
||

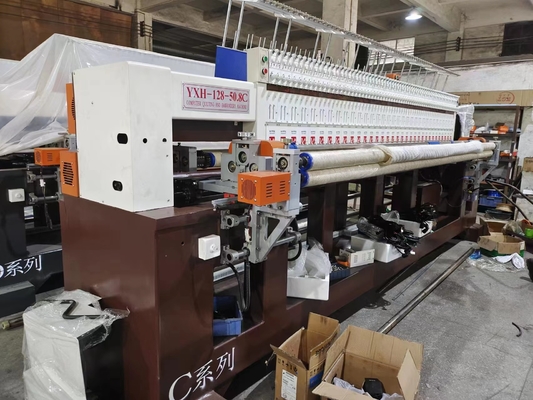

High Speed Computerized Quilting Embroidery Machine
Computerized quilting embroidery machine Functions:
1. Adopting digital control program, quilting and embroidery work together.
2. Less maintenance, easy operation, precise processing.
3. Have 4 tension motors to control the fabric tension, it can keep fabric smooth by tension motor when fabric feed-in and feed-out.
4. X,Y, Z direction adopt the servo control system,to ensure the accuracy of embroidery.
5. Top tread and bottom thread broken, machine auto stop..
6. Auto-return for patch-up embroidery function.
7. Automatic lubrication system.
8. Easy head selection for quilting function.
9. Continuously quilting independent patterns function,jumping quilting function.
10.The machine can be read Tajima, Barudan, ZSK and SWF formats.
11. More than 500 kinds designs available to choose, usb connecting with PC to input new designs.
Applications:
garments like jackets, quilts, blankets, bedspreads, handbags, pillow cases, car mats etc.
Parameter:
| Model | YXH-128-50.8C |
| Dimension(L*W*H) | 5.4*1.4*2 M |
| Gross weight | 4.5 Tons |
| Rolling speed | 300 -1200rpm |
| Quilting width | 2.45m |
| Needle space | 50.8 mm |
| X-axis movement | 254 mm |
| Head quantity | 33 pieces |
| Needle quantity | 66 pieces |
| Shuttle type | Big rotating shuttle |
| Quilting thickness | 20-300gsm |
| Stitch | Binary system:0.15-12.7mm |
| Needle storage capacity | 120,000 |
| Pattern storage capacity | 960 |
| Needle type | #14,#16 |
| Principal drive | Servo motor drive |
| Rated voltage(AC) | 220V/60HZ or 380V/50HZ |
| Power | 6KW |
Pattern show
