170CM Industrial Multi Needle Lock Stitch Quilting Machine

170CM Industrial Multi Needle Lock Stitch Quilting Machine

  • 170CM Industrial Multi Needle Lock Stitch Quilting Machine
  • 170CM Industrial Multi Needle Lock Stitch Quilting Machine
170CM Industrial Multi Needle Lock Stitch Quilting Machine
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXS-64-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets/month
Contact Now
Detailed Product Description
Warranty: 1 Year Measurement: 360cm*150cm*170cm
Moving Style: Frame Moved Quilting Width: 1700 MM
Max.sewing Speed: 800 RPM Color: Blue
High Light:

170CM Lock Stitch Quilting Machine

,

800r/min Lock Stitch Quilting Machine

,

195m/h Lock Stitch Quilting Machine

170CM Industrial Multi Needle Lockstitch Sewing Machine Jacket Making Machine



Special size and customized machine is available for customer's special demand.

1. 0.5 inch straight line quilting machine

2. 3 bars, needle bar distance 2"+3”

3. 3 bars, needle bar distance 1"+3"

4. 3 bars, needle bar distance 1.5"+3"

5. Other customized machine per customer's design and material.



Specification:

Product Name C series computer shuttle(lock stitch) multi-needle quilting machine
Model

YXS-64-2C #7

Dimension(L*W*H) 360cm*150cm*170cm
Gross weight 3.5 tons
Quilting width 170cm
Needle bar space 3 inches
Quilting thickness maximum 5cm
Rolling speed 500r/min-800r/min
Capacity 10-195m/h
Needle type #14, #16,#19
X-axis movement 254mm
Needle space 1 inch
Stitch length 2mm-6mm
Rated voltage(AC) 380V/50HZ,220V/60HZ
Power 3.5K Watts

Functions:

  1. Advanced computer and mechanistic technology.

  2. Testing upper thread breakage by infrared system. Machine auto stop when thread broken or used up.

  3. Hundreds pattern is available, more patterns can input in computer.

  4. Needle bar running with needle bar frame, no need to add extra lube,avoid the materials be soiled by lube.

  5. Adjust speed by computer, from 500rpm to 800r/min,the stitch can be set between 2mm-6mm.

  6. Needle bar and press plate adopt cam-free double-swinging device, avoiding matieral soiled by oil.

  7. Pattern compensation function, even thick material it has good work effect.

  8. 360° and 180° random quilting and limitless multi-span.

  9. Principal axis uses the frequency conversion device.

  10. The infrared system ,make your operate more safe.
  11. Easy to draw new design by mouse and insert new patterns by connecting usb disk with computer

Other models available:

1) Based on different work width : 82", 96", 118", 128" .

2) Based on needle bar quantity: 3 needle bar and 2 needle bar both can be chosen. 3 needle bar machine can make bigger size design, usually for home textile factory. 2 needle bar machine make small size design, usually for garments factory.

3) Based on shuttle size: Each machine can make as 10# bobbin or 7# bobbin. 10# bobbin load about 30m longer thread than 7# bobbin. So more home textile factory choose #10, and for garment factory to pursue more precise design, we suggest #7 bobbin.

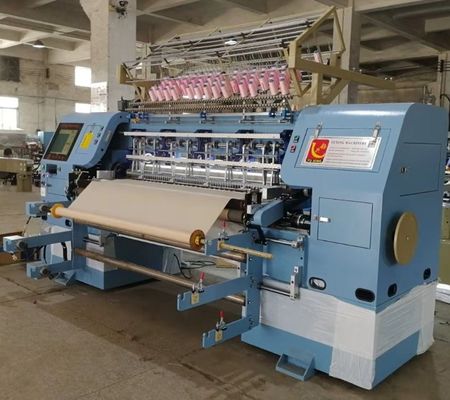

170CM Industrial Multi Needle Lock Stitch Quilting Machine 0170CM Industrial Multi Needle Lock Stitch Quilting Machine 1



Jacket making machine finished Products

170CM Industrial Multi Needle Lock Stitch Quilting Machine 2
