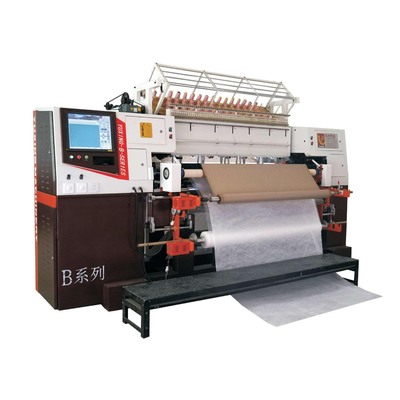

1400RPM 240CM Width High-Speed Computerized Multi-Needle Quilter with Rotary Hook​

​​1. Functional Upgrade​​

• Replaces traditional double-needle-bar shuttle quilting machines with higher efficiency and integrated operation.

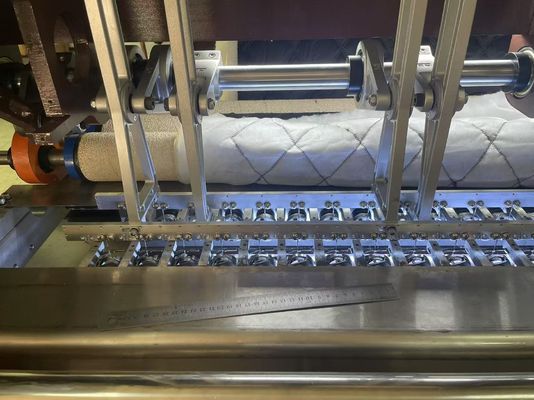

​​2. Innovative Dual-Needle-Bar Design​​

• Unique front/rear dual-needle-row configuration
• 3" spacing between front/rear needle bars (adjustable)
• 2" lateral needle spacing
• Rear needle bar supports stepless adjustment (1"-3") for versatile stitching requirements

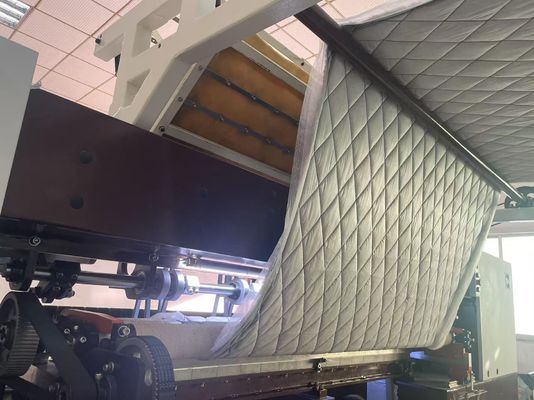

​​3. Drum-Type Continuous Feeding System​​

• Y-axis equipped with drum transmission mechanism
• Enables continuous fabric feeding, improving productivity by 40%

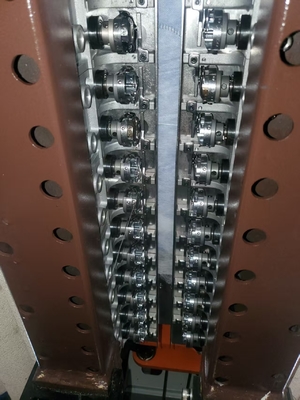

​​4. High-Efficiency Rotary Hook System​​

• Large rotary hook mechanism ensures smooth operation
• Maximum speed: 1400 RPM
• Noise reduction design decreases operating noise by 30%

​​5. Intelligent Speed Control​​

• Computerized stepless speed adjustment (500-1400 RPM)
• Stitch length adjustable from 2-8mm (±0.1mm precision)

​​6. Triple-Axis Servo Drive System​​

• X/Y/Z axes powered by high-torque servo motors
• Positioning accuracy: 0.01mm
• Reduces thread breakage by 60% while ensuring even stitching

​​7. Smart Design System​​

• Built-in graphic design software with mouse-drawing function
• Compatible with mainstream embroidery formats (*.DST, etc.)
• Supports USB flash drive for instant pattern import/export

​​8. Intelligent Monitoring System​​

• Auto-stop with alarm for top/bobbin thread breakage
• Automatic tension compensation for smooth fabric feeding
• Self-diagnostic function with real-time error code display
