1000r/min Multi Needle 3m Comforter Making Machine
  • name
  • name
  • name

1000r/min Multi Needle 3m Comforter Making Machine

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Export packing
Delivery Period: 20 Days
Payment Method: T/T, L/C
Supply Capacity: 30 SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE
Model Number
YXS-118-3CS
Max Sewing Speed:
1000 R/MIN
Quilting Width:
MAX.3 Meter
Size:
5100*1500*1700
Yield:
MAX. 210m/hour
Weight:
5200kg
Machine Type:
Computerized Quilting Machines
Highlight:

1000rpm Comforter Making Machine

,

1000R/MIN Comforter Making Machine

,

3m Comforter Making Machine

Product Description

3M Width Comforter Making Machine, Computer Quilting Machines Multi Needle Type



The 3m width multi needle quilting machine is a kind of comforter making machine. The quilting width maximum 3m.

It can make king size/queen size quilt/duvet/blanket/comforter/bedspread/pillow case, etc.



Advantages:

  • Speed can reach maximum 1000rpm.
  • Machine beam and fugase reinforced, heaiver.
  • Bigger power servo motor and imported bearings, high configuration
  • New upgraded computer system,
  • Compatible to embroidery designs(.dst,.dsb format).

Function

  • Adopt the advanced computer and mechanical manufacturing process technology.
  • High rigidity machine body, precise liner guide rail, and double swing structure needle rack
  • X,Y axis driving by Japan famous brand servo motor, main principal axis take frequency converter control,
  • Adjust speed by computer system, the speed can adjust from 500- 1000r/min,the stitch can be set between 2mm-8mm.
  • 180 degree and 360 degree random quilting patterns, and limited multi span for tack and jump designs.
  • Machine automatically stop when pre-set output is finished.
  • Japan or German brand core bearings and precise casting parts prolongs the machine lifetime.
  • Test the signal of all sensor by computer, which is easy to elimate machine malfunction.
  • Auto fault tips for servo motor and frequency converter, which is convenient to find problems and eliminate it.

Parameter


Model name YXS-118-2CS/3CS
Size: mm 5100*1500*1700
Weight 5.2 ton
Work width maximum 3000mm
Distance between needle bar 76.2(3") / 152.4(3"+3")
Distance between needles 25.4
X-axis movement 304
Material sewing thickness ≤50
Stitch 2mm-8mm
Estimated Output 10-210m/h
Needle model #14,#16,#19
Shaft rolling speed 500-1000rpm
Voltage(AC) type 380V/50HZ; 220V/60HZ
Power 7.5KW

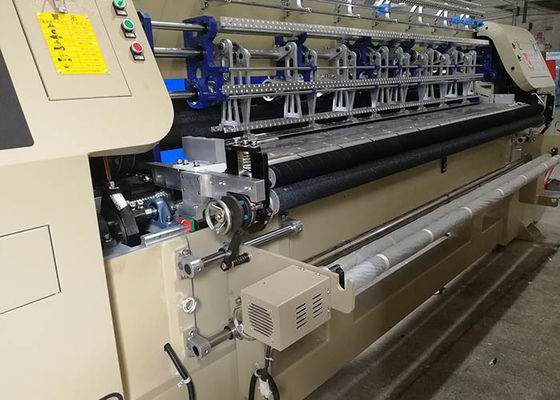

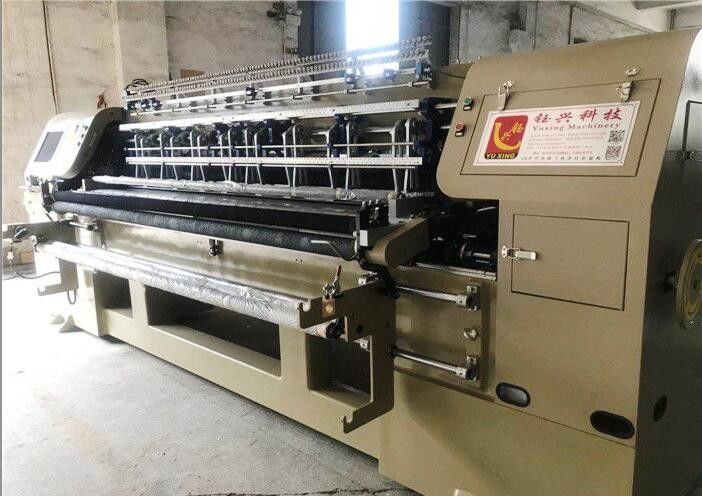

1000r/min Multi Needle 3m Comforter Making Machine 01000r/min Multi Needle 3m Comforter Making Machine 1

Patterns

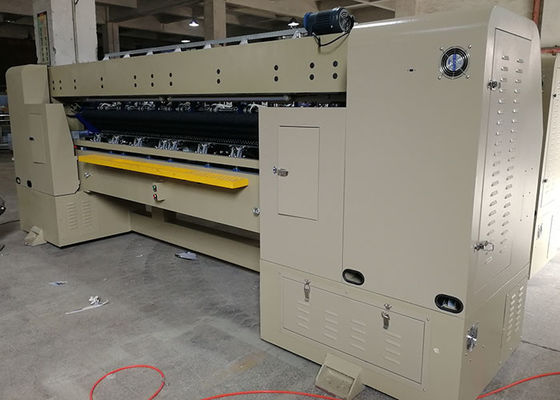

1000r/min Multi Needle 3m Comforter Making Machine 2
