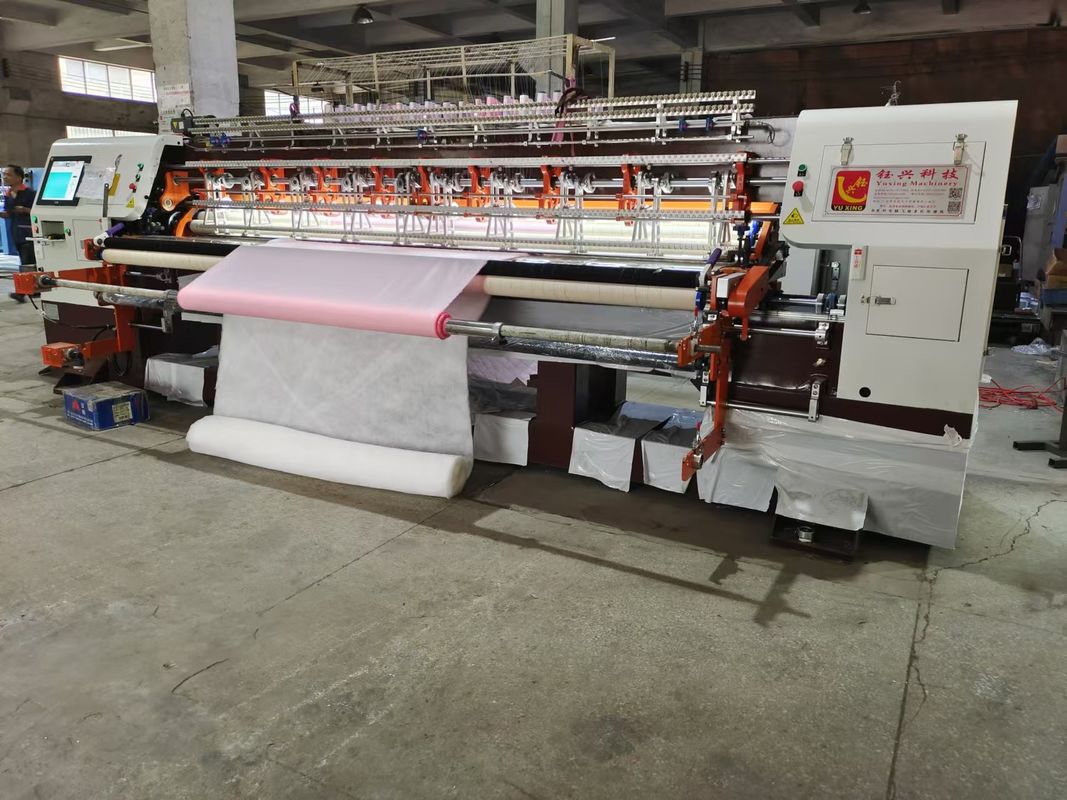

82 Inch Blanket Quilt Making Machine With Edge Cutting Device

82 Inch Blanket Quilt Making Machine With Edge Cutting Device

82 Inch Blanket Quilt Making Machine With Edge Cutting Device
82 Inch Blanket Quilt Making Machine With Edge Cutting Device

Product Details:

Place of Origin: China
Brand Name: Yuxing
Certification: CE ISO9001
Model Number: YXS-82-3D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 25 SETS/MONTH
Contact Now
Detailed Product Description
Product Name: Machine For Quilt Production Quilting Width: 82 Inch (210cm)
Running Speed: Max.1200rpm Sewing Thickness: Max.50mm
Output: Max. 240m/h Weight: 5200kg
High Light:

1200RPM Quilt Making Machine

,

210cm Quilt Making Machine

,

240m/h Quilt Making Machine

82 Inch Multi Needle Blanket Quilting Machine With Edge Cutting Device 1200RPM

This blanket quilting machine is a kind of multi needle quilting machine. It has edge cutting device installed on machine. It is mainly used for quilt, pajamas, blanket.

Edge cutting device strength
No matter what kind brand cutter machine, there are always below shortages: 1 when using the vertical cutting(slitting and egde cutting), the fabric is easy to run at sides, which cause it cut not that acurrate size. 2. when cutting, it is easy to get snag, means the cutted place not that neat. 3. it is not convenient to sharpen the knife.

While the new kind cutter, we use the edge cutting device on machine, the quilting machine roller can pull fabric tight, so when cutting edge, fabric won't go sides, so it cut more acurrately. and it is suitable to different kind fabric(except the non-glue cotton, this fabric easy to make knife get stuck), when cutting, the cutting place is neat without snagging problem. Besides, each knife has one stone near it, you only need to press button, stone will sharpen knife automatically.
82 Inch Blanket Quilt Making Machine With Edge Cutting Device 0
The edge cutting device is optional. The standard machine does not include this.

Quilting machine advantage

  • Machine body and foot are reinforced. More stably on running.
  • Automatic oil adding device for bearings maintenance.
  • Adjust speed by computer 500r-1200r/min, stitch length is adjustable(2mm-8mm) from computer .
  • New upgraded computer system, compatible with embroidery file format(DST/DSB)
  • Pattern compensation function.
  • Auto stop sensor detect thread condition, when thread broken, machine automatically stop.
  • 180 degree and 360 degree random quilting patterns, and limited multi span for tack and jump designs.

Specification:

Model name

YXS-82-3D

(L*W*H): mm

4425*1750*1700

Gross weight

5200kg

Maximum fabric width

 2100mm

Distance between needle rows

76.2+76.2(3"+3"

Distance between needles

25.4

X-axis max. moving distance

204

Work thickness

≤50

Stitch

2-8

Estimate output

10-240m/h

Suggest needle type

#14,#16,#19

Main shaft rolling speed

500-1200rpm

Voltage

380V/50HZ; 220V/60HZ

Total Power

5500W

82 Inch Blanket Quilt Making Machine With Edge Cutting Device 182 Inch Blanket Quilt Making Machine With Edge Cutting Device 2
