5m/min Automatic Cross Cutting Machine For Quilt Production

5m/min Automatic Cross Cutting Machine For Quilt Production

    • 5m/min Automatic Cross Cutting Machine For Quilt Production
    • 5m/min Automatic Cross Cutting Machine For Quilt Production
  • 5m/min Automatic Cross Cutting Machine For Quilt Production

    Product Details:

    Place of Origin: CHINA
    Brand Name: YUXING
    Certification: CE
    Model Number: CS-96A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negociatable
    Packaging Details: plastic film packing
    Delivery Time: 10 work days
    Supply Ability: 30sets/month
    Contact Now
    Detailed Product Description
    Cutting Width: 96 Inch Cutting Thickness: Maximum 5cm
    Cutting Speed: 5m/min Diamension: 3250*2000*1850(mm)
    Weight: 700kg Power: 0.65kw
    High Light:

    5m/min Cross Cutting Machine

    ,

    5cm Cross Cutting Machine

    ,

    50mm Cross Cutting Machine

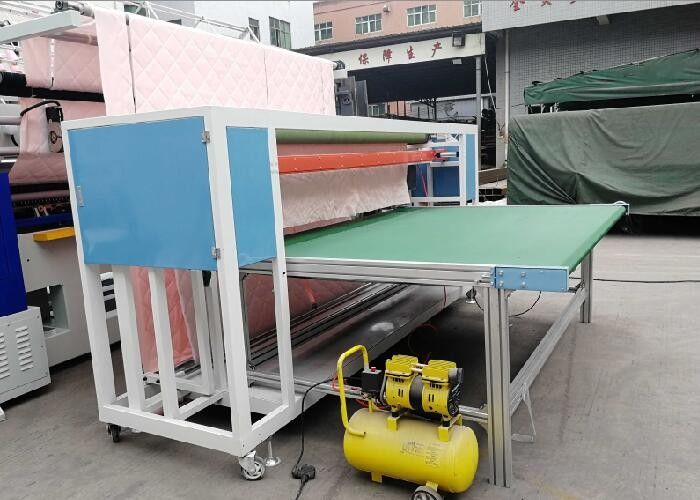

    5M/Min Speed Automatic Cross Cutting Machine For Quilt Production



    This cross cutting machine is mainly used with lock stitch multi needle quilting machine. It is used to cut the quilted material into pieces of sheet as required size. It is commonly used in home textile factory.



    Function

    1. Industrial quality PLC control system with touch screen.
    2. Easy operation, stable running, high efficiency.
    3. Infrared system to measure the cutting length, precise length cutting.
    4. Set cutting length and numbers of sheet by the touch screen. Once finished, machine stop working.
    5. Conveying platform to feed out the cutting sheet automatically.
    6. English and Chinese language can be chosen in control board.
    7. Neatly cutting without blurs.

    The standard configuration: 1 cross cutting blade, 2 edge cutting blade, 1 conveying platform.



    Parameter



    Model CS-96A
    Cutting thickness 50mm

    Weight

    0.7 tons
    Cross cutting 50mm-2500mm
    Cutting speed 5m/min
    Power 650w
    Voltage 380v/50hz
    Diamension 3250mm*2000mm*1850mm
