| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE, ISO9001 |
| Model Number: | YXS-96-3DS |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 SETS/MONTH |
| Work Width: | 2.45M | Max Rolling Speed: | 1400 RPM |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Moving Style: | Multi Needle | Power: | 7.5kw |
| After-sales Service Provided: | Online Video Technical Support | Installation: | Offer Video/field Installation |
| Highlight: | 280M/H Quilt Making Machine,1400RPM Quilt Making Machine,Multi Needle Quilt Making Machine |
||

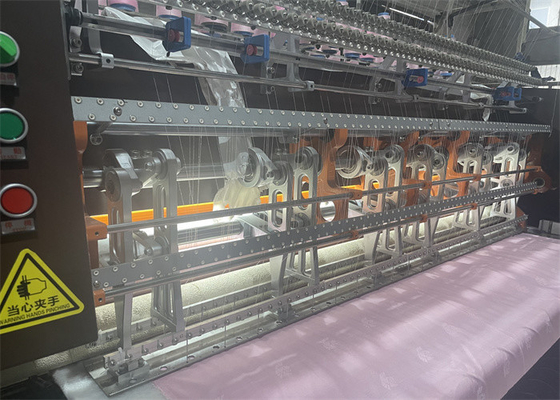

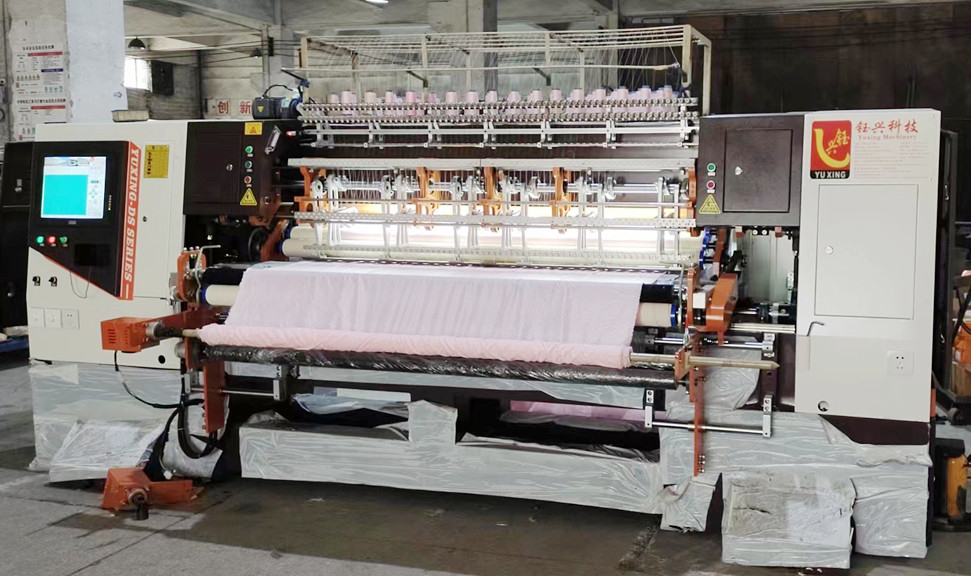

260M/H Output Computerized Quilt Making Machine / Multi Needle Quilting Machine
Computerized quilt making machine function:
Angle of fuselage for easy shuttle change
Fuselage and beam and foot are reinforced, which help machine works more stably with high speed.
Pattern editing is easy to learn, design can be drawn by mouse directly.
Adopt new computer system, it can adjust speed during machine running, and compatible to embroidery designs.
Adjust speed by the computerized system, the max speed can reach 1400RPM, the stitch could be set between 2-8mm.
X and Y axis are driven by servo motor and driver.
360 degree random quilting and embroidery, limitless multi-span, tack and jump.
Automatic oil refueling system to simlify the daily maintenance.
Advanced and practical testing upper thread broken techniques, the machine is auto-stop when the thread is broken.
Appropriate to:
Duvets, Garment, bedding products, hat, bag, sleeping-bag, nightgown, and house adornments.
Parameter
| Model | YXS-96-3DS |
| Dimension(L×W×H) | 473*175*170 CM |
| Quantity of needle bar | 3 |
| Work width | 245 CM |
| Space between needle bars | 152.4(3'+3') MM |
| Space between needles | 25.4MM |
| X-stroke | 254MM |
| Maximum thickness of sewing | 5CM |
| Stitch adjustable | 2MM~8MM |
| Yeid/hour | 10M~260M |
| Model of needle | #14, 16#, 19# |
| Work speed (RPM) | 500~1400 |
| Power | 7.5 KW |
| Voltage |
380V/50HZ; 220V/60HZ |
| Gross weight | 6800kg |
Warranty
1 year warranty since container arrives at the destination port.
During warranty, machine parts can be replaced for free(except the wearing parts, like needles, shuttle,shuttle holder,etc).
Pattern
