32 Heads 64 Needles Embroidered Quilting Machine For Garments

32 Heads 64 Needles Embroidered Quilting Machine For Garments

  • 32 Heads 64 Needles Embroidered Quilting Machine For Garments
  • 32 Heads 64 Needles Embroidered Quilting Machine For Garments
32 Heads 64 Needles Embroidered Quilting Machine For Garments
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE
Model Number: YXH-64-H-50.8B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sets
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 20 Days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets/month
Contact Now
Detailed Product Description
Work Width: 2 Rolls 1.6m Width Fabric Rolling Speed: 1000 Roll Per Minute
Needles Quantity: 64 Pcs Shuttle Type: Large Rotary Shuttle
Sewing Thickness: 20g-300g / Sqm Type: Quilting Embroidery
High Light:

32 Heads Embroidered Quilting Machine

,

64 Needles Embroidered Quilting Machine

,

1.6m Embroidered Quilting Machine

32 Heads Quilting And Embroidery Machine With Large Rotary Shuttle



Product description



This kind quilting embroidery machine adopts large rotary shuttle, the rolling part is separated in the middle, which can put on 2 rolls of 1.6m width fabric /leather/PU/PVC. The shorter roller can make sure the pulling force even. With this design, the machine can process higher precise designs.



Application

high quality garments, quilts,blanket, quilt covers, pajamas, handbags, pillow case, car seat cover, etc.



Features

1. This Quilting and embroidery machine adopting digital control program .

2. The revolution of the spindle ,saddles and Rollers controlled by Panasonic servo momor and drivers

3. 360° quilting and embroidery ,Tack and jump function inclued.

4. Automatically return to patch up the unfinished design after break.

5. The PC come with 500 kinds of quilting and embroidery patterns for you choice

6. Thread break detectors (top tread and bottom thread )

7. USB connecting with PC to input new designs.

8. 4 tension motors to control the fabric tension, so it can sew more precise designs.

9. It can choose any single needle to work independently, which is controlled by each needle switch. In this way, it can change patterns easily and efficiently.



Parameter:



Model YXH-64-H-50.8B
Dimension 5.8m*1.4m*2m
Gross Weight 3.5 tons
Work width 3.4 meter
Space between needle 2 inch
X-stroke 260mm
Quantity of heads 32pcs
Machine type single needle control
Quilting thickness (gsm) 20-600
Length of stitch  0.15-12.7mm
Needle type #14,#16
Computer system Dahao system
Power 5kw
Voltage(AC) 380V/50HZ,/220V/60HZ



Detailed picture

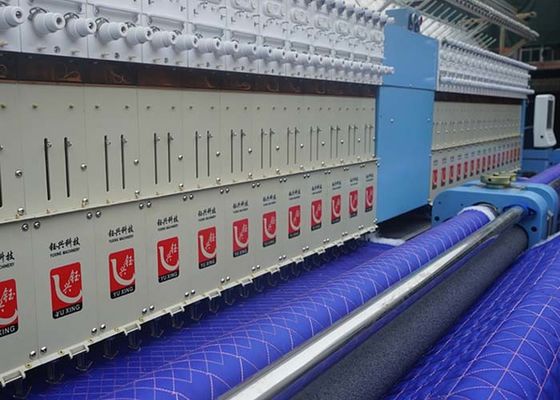

32 Heads 64 Needles Embroidered Quilting Machine For Garments 0

Designs and usage



32 Heads 64 Needles Embroidered Quilting Machine For Garments 1
