| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXH-64-H-50.8B |
| Minimum Order Quantity: | 1 Sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Sets/month |
| Work Width: | 2 Rolls 1.6m Width Fabric | Rolling Speed: | 1000 Roll Per Minute |
|---|---|---|---|
| Needles Quantity: | 64 Pcs | Shuttle Type: | Large Rotary Shuttle |
| Sewing Thickness: | 20g-300g / Sqm | Type: | Quilting Embroidery |
| High Light: | 32 Heads Embroidered Quilting Machine,64 Needles Embroidered Quilting Machine,1.6m Embroidered Quilting Machine |
||

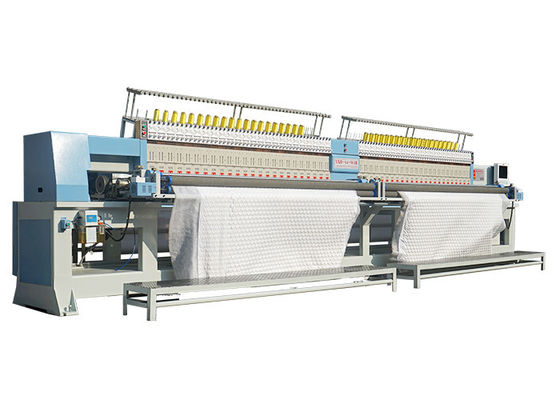

32 Heads Quilting And Embroidery Machine With Large Rotary Shuttle
Product description
This kind quilting embroidery machine adopts large rotary shuttle, the rolling part is separated in the middle, which can put on 2 rolls of 1.6m width fabric /leather/PU/PVC. The shorter roller can make sure the pulling force even. With this design, the machine can process higher precise designs.
Application
high quality garments, quilts,blanket, quilt covers, pajamas, handbags, pillow case, car seat cover, etc.
Features
1. This Quilting and embroidery machine adopting digital control program .
2. The revolution of the spindle ,saddles and Rollers controlled by Panasonic servo momor and drivers
3. 360° quilting and embroidery ,Tack and jump function inclued.
4. Automatically return to patch up the unfinished design after break.
5. The PC come with 500 kinds of quilting and embroidery patterns for you choice
6. Thread break detectors (top tread and bottom thread )
7. USB connecting with PC to input new designs.
8. 4 tension motors to control the fabric tension, so it can sew more precise designs.
9. It can choose any single needle to work independently, which is controlled by each needle switch. In this way, it can change patterns easily and efficiently.
Parameter:
| Model | YXH-64-H-50.8B |
| Dimension | 5.8m*1.4m*2m |
| Gross Weight | 3.5 tons |
| Work width | 3.4 meter |
| Space between needle | 2 inch |
| X-stroke | 260mm |
| Quantity of heads | 32pcs |
| Machine type | single needle control |
| Quilting thickness (gsm) | 20-600 |
| Length of stitch | 0.15-12.7mm |
| Needle type | #14,#16 |
| Computer system | Dahao system |
| Power | 5kw |
| Voltage(AC) | 380V/50HZ,/220V/60HZ |
Detailed picture
Designs and usage
