Multi Needle 3200MM High Speed Quilting Machine for Bed Sheets

MOQ:	1 Set
Price:	Negotiable
Standard Packaging:	export packing
Delivery Period:	20 days
Payment Method:	T/T, L/C
Supply Capacity:	20 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

CE IOS9001

Model Number

YXS-128-2/3DS

Max Sewing Thickness:

50 MM

Quilting Width:

3200 MM

X-axis Movement:

304 MM

Stitch:

2-8 MM

Rolling Speed:

500-1400 RPM

Voltage:

380V /220V 50HZ/60HZ

Condition:

Warranty:

1 Year

Highlight:

3200MM High Speed Quilting Machine

1400RPM High Speed Quilting Machine

280m/hour Quilting Machine

Product Description

High Speed 3200 MM Computerized Multi-needle Bed Sheets Quilting Machine

Quilting Machines Appropriate to: Garment, bedding products, hat, bag, sleeping-bag, nightgown, and house adornments.

Model chosen:

1) Models can be chosen by different work width : 64", 82", 96", 118", 128" .

2) 3 needle bar and 2 needle bar both can be chosen. 3 needle bar machine can make bigger size design, usually for home textile factory. 2 needle bar machine make small size design, usually for garments factory.

3) Each machine can make as 10# bobbin or 7# bobbin. 10# bobbin load about 30m longer thread than 7# bobbin. So more home textile factory choose #10, and for garment factory to pursue more precise design, we suggest #7 bobbin

Specification:

Product Name	Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine
Model	YXS-128-2DS/3DS
Size(LWH)	559017501700mm
Weight	7500kg
Quilting width	3200mm
Quilting thickness	≤50mm
Rolling speed	300-1400r/min
Output	10-280m/hour
Needle type	#16,#19
X-axis movement	260mm
Needle space	25.4mm
Needle bar space	2E 76.2mm (3" )/3E 152.4(3''+3'')
Stitch	2-6mm
Rated voltage(AC)	380V/50HZ 220V/60HZ
Power	8.5KW

Function:

· Inset pattern and follow to work

· Convenient pattern editing function

· Ringing notice when start machine

· Auto lift needle and orientation brake system

· Multi-span and independent pattern quilting un-limited.

· The infrared system make your operate more safe

· Adopt the advanced computer and mechanistic technology

· Saddling rack and roller are drived by servo equipment

· Principal axis uses the frequency conversion device

· Auto stop system when the thread is broken.

· Compensation function ,an effective solution for looping pattern with thick material

· Adjust speed by computer and the speed can reach 1400r/min,the stitch can be set between 2mm-8mm

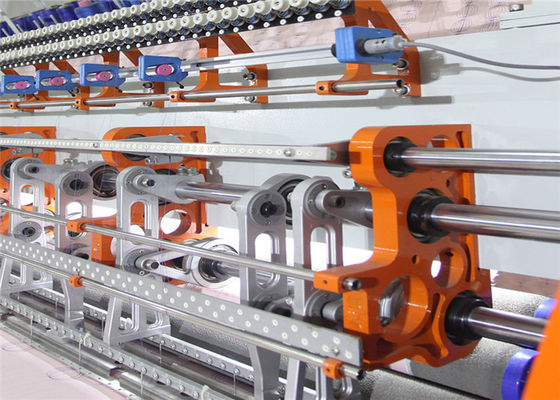

Multi Needle 3200MM High Speed Quilting Machine for Bed Sheets

Pattern:

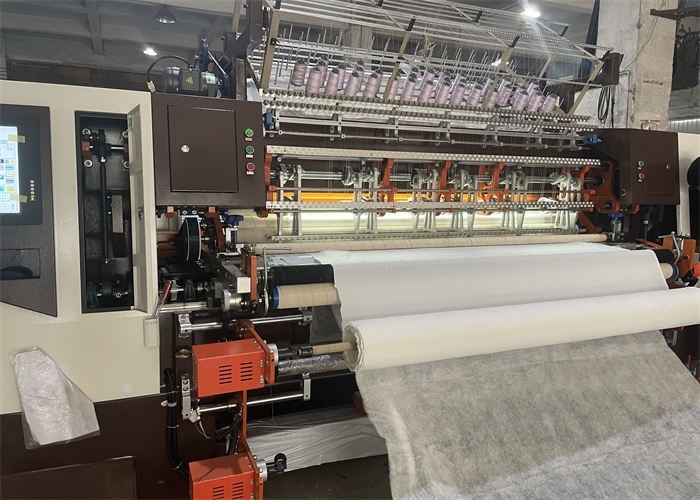

Multi Needle 3200MM High Speed Quilting Machine for Bed Sheets
