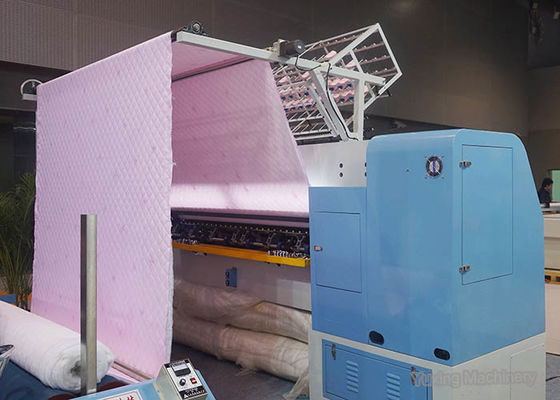

200M/H Industrial Bedcover Lock Stitch Quilting Machine

200M/H Industrial Bedcover Lock Stitch Quilting Machine

    • 200M/H Industrial Bedcover Lock Stitch Quilting Machine
    • 200M/H Industrial Bedcover Lock Stitch Quilting Machine
  • 200M/H Industrial Bedcover Lock Stitch Quilting Machine

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE IOS9001
    Model Number: YXS-94-2/3C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 15 Days
    Payment Terms: T/T, L/C
    Supply Ability: 30 Sets/month
    Contact Now
    Detailed Product Description
    Product Name: Quilt Making Machine Warranty: 12 Months
    Quilting Width: 94 Inch X-axis Movement: 254 MM
    Speed: 500-800r/min Quilting Thickness: Max. 50 MM
    Moving Style: Frame Move Needle Bar: 3 Bars / 2 Bars
    High Light:

    200M/H Lock Stitch Quilting Machine

    ,

    240CM Lock Stitch Quilting Machine

    ,

    240CM Industrial Quilting Machine

    200M/H Industrial Lock Stitch Multi Needle Machine Quilting For Bedcover 240CM



    Usage: It is widely used for producing high-quality garments, quilt covers,blanket, gloves,sleeping bag, pajamas,bed spread,seat cover, and household



    Model chosen:

    1) Models can be chosen by different work width : 64", 82", 96", 118", 128" .

    2) 3 needle bar and 2 needle bar both can be chosen. 3 needle bar machine can make bigger size design, usually for home textile factory. 2 needle bar machine make small size design, usually for garments factory.

    3) Each machine can make as 10# bobbin or 7# bobbin. 10# bobbin load about 30m longer thread than 7# bobbin. So more home textile factory choose #10, and for garment factory to pursue more precise design, we suggest #7 bobbin.



    Specification:

    Product Name High Speed Computerized Shuttle Multi-needle Quilting Machine
    Model YXS-94-2/3C(3''/3”+3”)
    Size(L*W*H) 4.6m*1.5m*1.7m
    Weight 4.6 ton
    Quilting width 2450mm
    Needle bar space 2C 76.2 3C 152.4mm
    Quilting thickness maximum 700gsm. Thicker fabric need to be customized
    Running speed 500-800r/min
    One hour yield 10m-195m
    Needle model #16,#19 German needle
    X- stroke 254mm
    Distance between Needles 25.4mm
    Stitch  2-8mm
    Rated voltage(AC) 380V/50HZ,/220V/60HZ
    Total Power 6KW



    Functions:

    1. Easy to creat new desig on computer and it can connect usb disk to copy new design.

    2. Ringing notice when start machine, which can make the operation safer.

    3. The infrared system, make you operate safer.

    4. Principal axis uses the frequency conversion device.

    5. Saddling rack and roller are driven by servo equipment.

    6. Adopt the advanced computer and mechanistic technology.

    7. Multi-span independent pattern (360°and 180° patterns are available).

    8. Compensation function, an effective solution for looping pattern with thick material.

    9. Needle bar frame structure is more firm and durable so that the cost of maintenance is cheaper.

    10. Adjust speed by the computer from 500rpm to 800r/min, the stitch can be set between 2mm-6 mm.

    11. Needle bar and press plate are connected by double-swinging needle bar frame, which is with high precision and durable. This structure can avoid the fabric is ruined by oil during machine running.

    12. Advanced and practical up thread-break detection unit, the machine is auto-stop when the thread is broken.

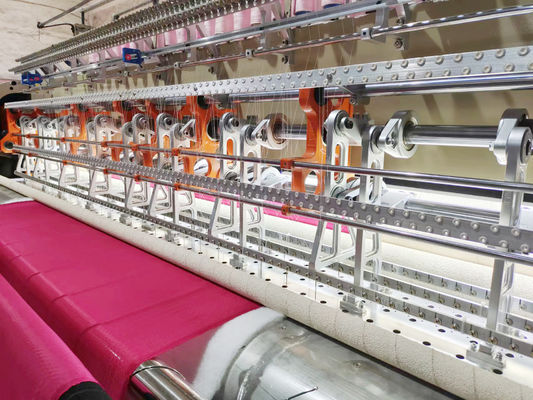

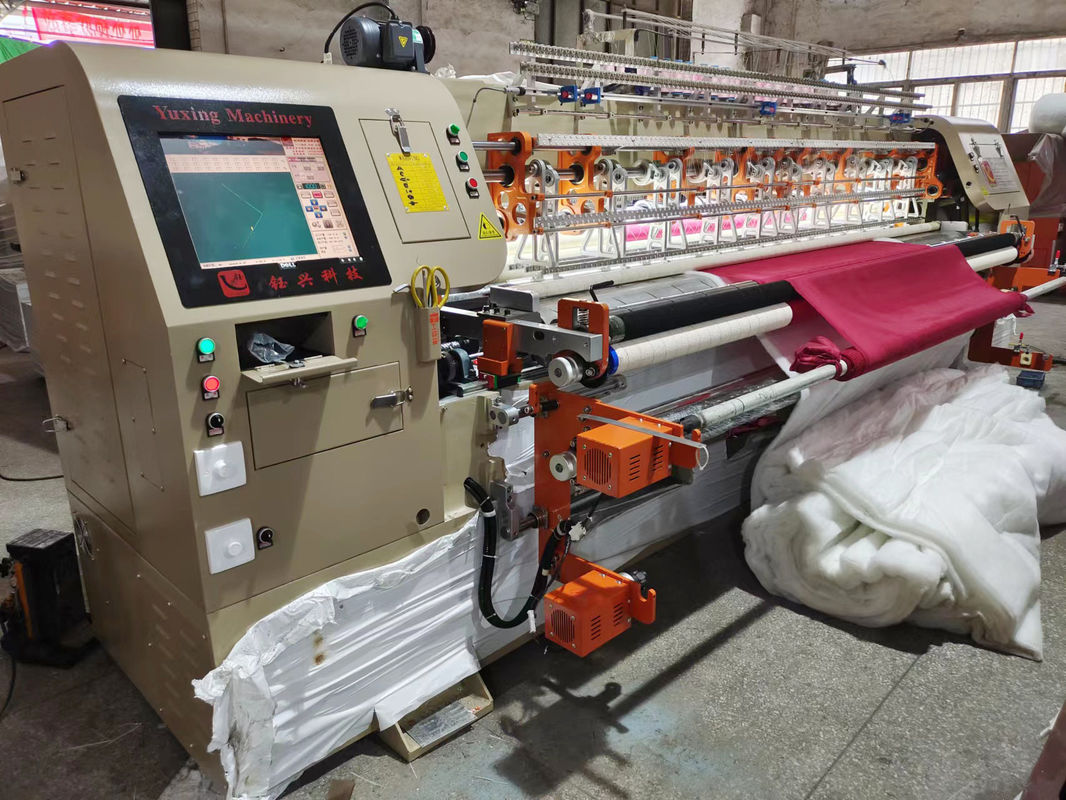

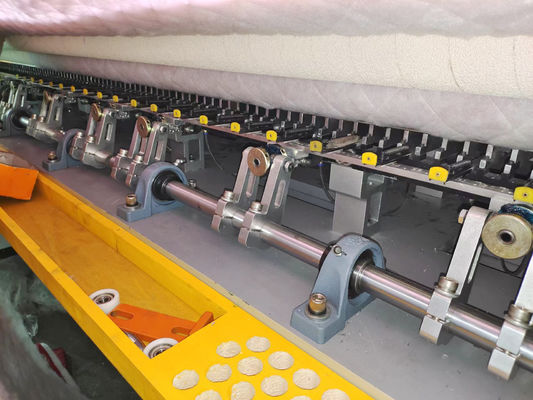

    Machine detailed picture

    200M/H Industrial Bedcover Lock Stitch Quilting Machine 0



    Pattern show

    200M/H Industrial Bedcover Lock Stitch Quilting Machine 1
