Place of Origin: | China |
Brand Name: | Yuxing |
Certification: | CE |
Model Number: | YXS-96-2D |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Export packing |
Delivery Time: | 25 workdays |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 set/month |
Warranty: | 1 Year | Condition: | New |
---|---|---|---|
Max Sewing Speed: | 1200r/min | Certification: | CE |
Quilting Width: | 2450mm | Output: | 60-230m/h |
Weight: | 5600kg | Power: | 6500W |
High Light: | 6500W Computerized Fabric Cutting Machine,1200r/Min Computerized Fabric Cutting Machine,6500W Digital Fabric Cutting Machine |

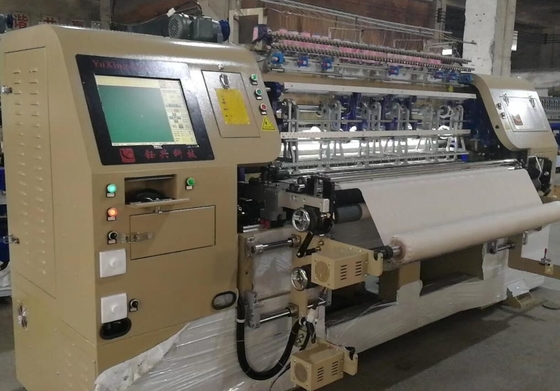

Update Computer System Multi Needle Quilting Machine For Bedding
computer system:
1. As a quilting equipment, the first thing to realize is the pattern management function, the copy and deletion of pattern files, and the computer quilting machine system can store thousands of patterns; colleagues have the pattern browsing function, pattern rotation and mirroring functions; support USB interface import;
2. Set and modify the boundary of the frame flexibly. By setting the boundary and pattern margin, the pattern graphics can be automatically scaled; functions such as position translation and fine-tuning;
3. The screen dynamically displays the relevant parameters of the quilting operation in real time: pattern trajectory, stitch length, needle speed and other information. If there is an abnormal phenomenon, it will automatically stop and display the fault information;
4. Automatic thread break detection and track search function: thread break detection device, which can automatically float when the thread breaks, and automatically return to the break point after threading to continue quilting;
5. Automatic line setting from the beginning to the end of quilting, automatic recording of output, automatic reset function; it can perform spindle failure detection function, and has protection functions such as cross-border.
Function:
1. Upgrade computer control system and mechanical manufacturing technology.
2. The structure of the needle bar frame is stronger and more durable, and the maintenance cost is cheaper.
3. The needle bar and the needle bar frame run together without additional lubricating oil to avoid the material being soiled by the lubricating oil.
4. Using the binding rack guide rail, the operation is stable, the pattern is more accurate, and the wire breakage rate is lower.
5. Both the saddle frame and the rollers adopt imported servo drive equipment.
6. The main shaft adopts frequency conversion device.
7. Computer speed control, the speed can reach 500-1200RPM, and the needle distance can be set between 2-8mm.
8. Use the mouse to directly make the pattern, compatible with the embroidery file format (DST DSB).
9. 360° random quilting, unlimited span independent quilting.
