| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE IOS9001 |
| Model Number: | YXS-96-3E |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | export packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Sets/month |
| Sewing Thickness: | Max 5 CM | Quilting Width: | 2450 MM |
|---|---|---|---|
| X-axis Movement: | 254 MM | Stitch: | 2-8 MM |
| Rolling Speed: | Max 1400 RPM | Voltage: | 380V /220V Or 50HZ/60HZ |
| Condition: | New | Warranty: | 12 Months For Main Parts |
| High Light: | 380V Industrial Quilting Machine,2450MM Computerised Quilting Machine,1400RPM Computerized Quilting Machines |
||

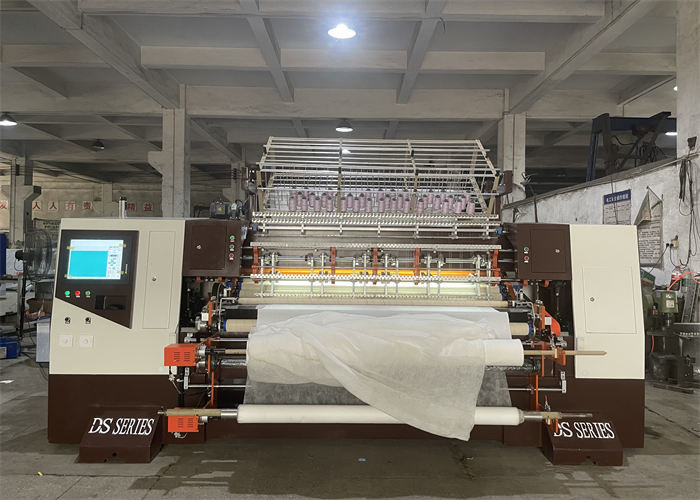

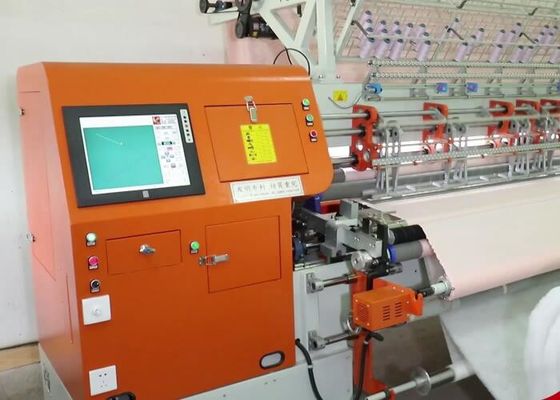

380V Industrial Multi Needle Computerized Quilting Machines For Manufacturer Use
Quilting Machines Appropriate to: covers, bedding products, hats, bags, sleeping-bags, nightgowns, and house adornments.
Model chosen:
1) Models work width : 96".
2) 3 needle bar machine can make bigger size design, usually for home textile factory. 2 needle bar machine make small size design, usually for garments factory.
3) Each machine can make as 10# bobbin or 7# bobbin. 10# bobbin load about 30m longer thread than 7# bobbin. So more home textile factory choose #10, and for garment factory to pursue more precise design, we suggest #7 bobbin
Specification:
| Product Name | Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine |
| Model | YXS-96-3DS |
| Size(L*W*H) | 4730*1750*1700mm |
| Weight | 6800kg |
| Quilting width | 2450mm |
| Quilting thickness | ≤50mm |
| Rolling speed | 300-1400r/min |
| Output | 10-280m/hour |
| Needle type | #16,#19 |
| X-axis movement | 254mm |
| Needle space | 25.4mm |
| Needle bar space | 3E 152.4(3''+3'') |
| Stitch | 2-8mm |
| Rated voltage(AC) | 380V/50HZ 220V/60HZ |
| Power | 7.5KW |
Function:
· The computer system inset pattern and follow to work
· Convenient pattern editing function
· Ringing notice when start machine
· Auto lift needle and orientation brake system
· Saddling rack and roller are drived by servo equipment
· Multi-span and independent pattern quilting un-limited.
· The infrared system make your operate more safe.
· Adopt the advanced mechanistic technology and computer system
· Principal axis uses the frequency conversion device
· Auto stop system when the up thread is broken.
· Compensation function, an effective solution for looping pattern with thick material
· Adjust speed by computer and the speed can reach 1400r/min,the stitch can be set between 2 to 8mm
Pattern:
