Auto Lubrication 300M/H 8CM Thickness Foam Multi Needle Quilting Machine For Mattress

320M/Hour Industrial Multi Needle Mattress Machine For Quilting 8CM Foam

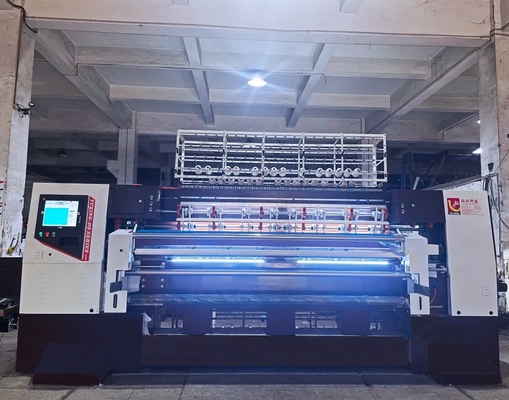

The model YXN-94-3E multi needle mattress machine is the newest type of chain stitch quilting machine. It is mainly used for high end bed cover, mattress top.

• Maximum speed 1500rpm. Output can reach maximum 320m/hour.
• The machine whole body are highly reinforced, high configuration.
•  It adopt the big power imported servo motor, main motor also adopt servo motor.
• New computer system, tack & jump. It can make embroidery designs.
• Automatic oil refueling system extends the machines life time

Specification:

Function:

1. Optimized the mechanical structure, High rigidity machine body, perfect protecting equipment
2. The practical patented product “moving needle plate” will make the quilting patterns more elegant.
3. More tight thread stitches make the quilting pattern with three-dimensional effect.
4. Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
5. Multi-span and independent patterns(360°and 180°patterns are available)
6. Automatic stop system control in case the top thread or the bottom thread breaks, auto needle-lifting.
7. No need to adjust the press plate's position for different thickness of quilting material.
8. Outstanding features such as high rigidity, high running speed, low vibration, and noise.
9. Newly upgrade computer system, easy operation and auto tips for sensors and encoders..
10. Easy preparation of CAD drawings extremely precise
11. Computer adjust to compensate the pattern out of shape problem for thick material.

Pre-sales service

A. Inquiry and consulting support.

B. Visit our Factory.

C. Further consulting.& adopt customer advice.

D. Test customer's material with our machine.

E. Support the inspection before delivery.

After-sales service

A. Videos and step by step procedure guidance for installation and problem

B. Engineers available to service machinery overseas.

C. The machine maintain for one year, if the damages caused by machine itself, excluding the man-made accidents, the broken parts offered by seller in free of charge, but the transport cost for buyer's account.

Besides, we also offer customized service per customer's special request.
