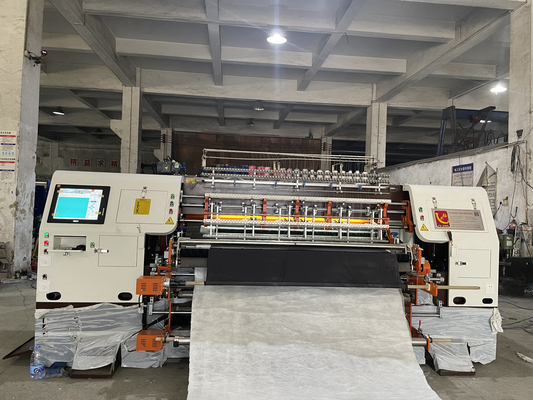

High Precision 210CM Multi Needle Quilting Machine For Pajamas

High Precision 210CM Multi Needle Quilting Machine For Pajamas

    • High Precision 210CM Multi Needle Quilting Machine For Pajamas
    • High Precision 210CM Multi Needle Quilting Machine For Pajamas
  • High Precision 210CM Multi Needle Quilting Machine For Pajamas

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE ISO9001
    Model Number: YXS-82-2D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 15 days
    Payment Terms: L/C, T/T
    Supply Ability: 25 SETS/MONTH
    Contact Now
    Detailed Product Description
    Product Name: Quilting Machine For Pajamas Quilting Width: 210cm
    Running Speed: Maximum 1200rpm Sewing Thickness: Maximum 650gsm
    Output: 10-240m/h L*W*H: 4425*1750*1700
    High Light:

    210CM Multi Needle Quilting Machine

    ,

    650gsm Multi Needle Quilting Machine

    ,

    240m/h Automatic Quilting Machine

    High Precision Multineedle Quilting Machines For Pajamas 210CM Width



    Application for multineedle quilting machine

    This 210cm width multi needle quilting machine is usually suggested for pajamas, quilt, bed cover, etc.



    Suitable thread:

    Upper thread: 40S/2; 50S/2; 120D/2

    Bottom thread: 40S/2; 50S/2



    Feature

    • Fuselage and beam and foot are reinforced. More stably on running.

    • Adjust speed by computer 500r-1200r/min, set different stitch length(2mm-8mm) from computer .

    • New upgraded computer system, compatible with embroidery file format(DST/DSB)

    • Pattern compensation function is an effective solution for looping pattern with thick material.

    • Auto stop sensor detect thread condition, when thread broken, machine automatically stop.

    • The automatic oil refueling function can make the machine maintenance easier and prolongs the machine lfetime.

    • 180 degree and 360 degree random quilting patterns, and limited multi span for tack and jump designs.

    • Big power servo motor and heavier machine body, Faster machine running, up to 1200r/min

    • Ringing notice and infrared system keep worker operation safety.

    Guaranty and Installation:

    1. Give extra free spare part when ship with the machine.
    2. Offer manual, pattern book, installation video and step by step instruction if meet problems.
    3. If need field installation or repairing machine, client should bear tickets, food, hotel and labor cost $100/day.

    4. Within a year if part is broken, the supplier can replace part for free. Damage resulting from buyer's wrong operation / actions without supplier's guide / force majeure is not in the scope of the warranty. (note bobbin case, bobbin, needles, lamp is not in the scope of the warranty)



    Specification:

    Model name

    YXS-82-2D

    (L*W*H): mm

    4425*1750*1700

    Weight

    5.2 tons

    fabric width

    maximum 2100mm

    Distance between needle rows

    76.2(3")

    Distance between needles

    25.4

    X-axis travel

    204

    Sewing thickness

    ≤50

    Stitch

    2-8

    Expected output

    10-240m/h

    Applicable needle

    #14,#16,#19

    Main shaft speed

    500-1200rpm

    Voltage

    380V/50HZ, 220V/60HZ

    Total Power

    5500W



    Designs

    High Precision 210CM Multi Needle Quilting Machine For Pajamas 0



    High Precision 210CM Multi Needle Quilting Machine For Pajamas 1

    High Precision 210CM Multi Needle Quilting Machine For Pajamas 2
