128 Inches Multi Needle Quilting Machine With Japan Motor

128 Inches Multi Needle Quilting Machine With Japan Motor

  • 128 Inches Multi Needle Quilting Machine With Japan Motor
  • 128 Inches Multi Needle Quilting Machine With Japan Motor
128 Inches Multi Needle Quilting Machine With Japan Motor
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXS-128-2/3D
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 20 Days
Payment Terms: T/T, L/C
Supply Ability: 30 SETS/MONTH
Contact Now
Detailed Product Description
Max Sewing Speed: 1200 R/MIN Dimension(l*w*h): 393.5*175*170 CM
Weight: 6600 KG After-sales Service Provided: Online Video
Warranty: One Year Quilting Width: 128 Inches
Voltage: 380V Number Of Head: Multi Needle
High Light:

128 Inches Multi Needle Quilting Machine

,

1200R/MIN Multi Needle Quilting Machine

,

3200mm Quilting Machine

128 Inches Computerized Shuttle Multi-Needle Quilting Machines with Japan motor



Function:

1. Adopt the advanced computer and mechanistic technology.

2. Needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled by lube.

3. Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.

4. Saddling rack and roller are driven by servo equipment.

5. Principal axis uses the frequency conversion device.

6. Adjust speed by computer, the speed can reach 1200r/min,the stitch can be set between 2mm-6mm.

7. 360°random quilting and limitless multi-span and independent quilting.

8. Compensation function,an effective solution for looping pattern with thick material.

9. Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.

10. The infrared system ,make your operate more safe.

11. Pattern editing is easy to learn.

12. Ringing notice when start machine.





  YXS-128-2/3D
Dimension(L×W×H) 5590*1750*1700
Quantity of needle bar 3
Quilting width 3200
Space between needle rows 76.2(3') / 152.4(3'+3')
Space between needles 25.4
X-axis movement 254
Thickness of quilting ≤50
Stitch 2~8
Speed of operation(m/H) 10~240
Model of needle 16#,19#
Rolling speed 500~1200
Total power required 7.5KW
Voltage

380V/50HZ220V/60HZ

Gross weight 6600kg

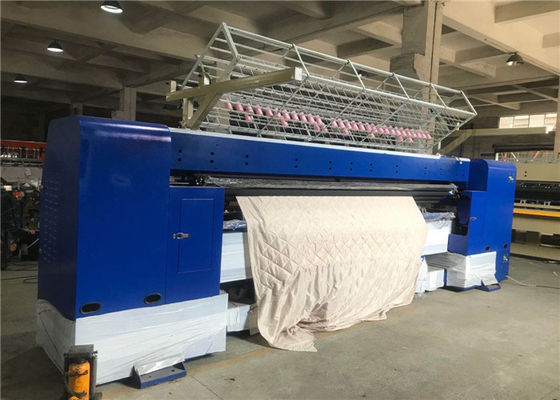

128 Inches Multi Needle Quilting Machine With Japan Motor 0

Appropriate to: comforter, quilts, bag, sleeping-bag, nightgown, and house adornments.



Pattern show

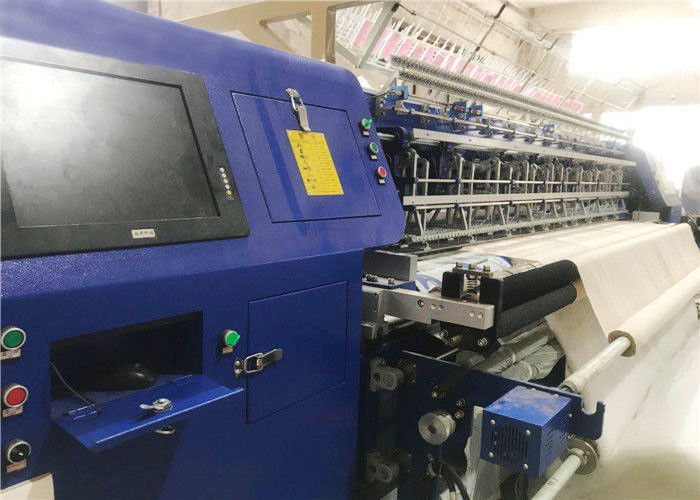

128 Inches Multi Needle Quilting Machine With Japan Motor 1
