94 Inches 1000 RPM Beddings Computerized Quilting Machine

94 Inches 1000 RPM Beddings Computerized Quilting Machine

    • 94 Inches 1000 RPM Beddings Computerized Quilting Machine
    • 94 Inches 1000 RPM Beddings Computerized Quilting Machine
  • 94 Inches 1000 RPM Beddings Computerized Quilting Machine

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE, ISO9001
    Model Number: YXS-94-2/3CS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 15 Days
    Payment Terms: T/T, L/C
    Supply Ability: 30 SETS/MONTH
    Contact Now
    Detailed Product Description
    Warranty: 1 Year Max Rolling Speed: 1000 RPM
    Dimension(l*w*h): 4.3*1.5*1.7 M After-sales Service Provided: Video Technical Support
    Quilting Width: 94 Inches Voltage: 380V / 220V
    Weight: 4300 KG Number Of Head: Multi Needle
    High Light:

    Yuxing Computerized Quilting Machine

    ,

    1000RPM Computerized Quilting Machine

    ,

    2450mm Industrial Quilting Machine

    94 Inches 1000 RPM Computerized Shuttle beddings Quilting Machines​



    Function:



    1, Computerized speed governing , max.1000r/min.

    2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.

    3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.

    4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.

    5, Dual clutch device, to solve the synchronization problem of rollers in front and back.

    6, Using high-precision and high rigidity Imported screw mandrel.

    7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.

    8, Automatic thread-break detection unit.

    9, Infrared sensor make sure more safety operation.

    10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.



      YXS-94-2/3CS
    Dimension(L×W×H) 4300*1500*1700
    Quantity of needle bar 3
    Quilting width 2450
    Space between needle rows 76.2(3') / 152.4(3'+3')
    Space between needles 25.4
    X-axis movement dispacent 254
    Thickness of quilting ≤50
    Stitch length 2~8
    Speed of operation(m/H) 10~210
    Model of needle 16#,19#
    Speed of main shaft(RPM) 500~1000
    Total power required 5.5KW
    Voltage

    380V/50HZ220V/60HZ

    Gross weight 4300kg



    Compare with the C series Lock stitch quilting machine:

    1. Bearing with lock core, stable and not easy to heat

    2. Permanent magnet inductor, less loss current, more stable pattern

    3. Using synchronous belt drive, uniform rotation speed

    4. Encoder program, machine information transmission more accurate

    5. Adopt aviation aluminum strip, lighter material, faster machine speed

    6. Angle of fuselage for easy shuttle change

    7. Cut-off auto-stop infrared data direct to the computer, the reaction speed is faster

    8. Big Four Volt Power, Faster Machine Running, up to 1000r/min

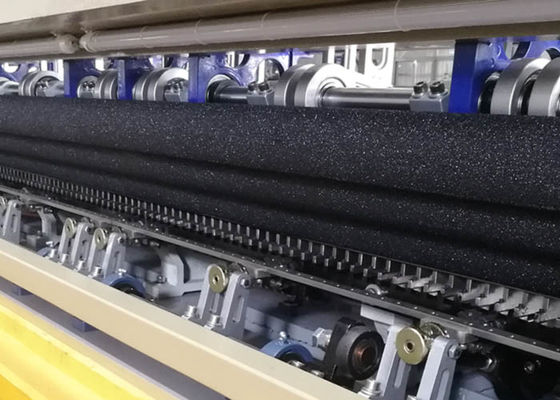

    94 Inches 1000 RPM Beddings Computerized Quilting Machine 0

    Appropriate to: comforter, quilts, bag, sleeping-bag, nightgown, and house adornments.

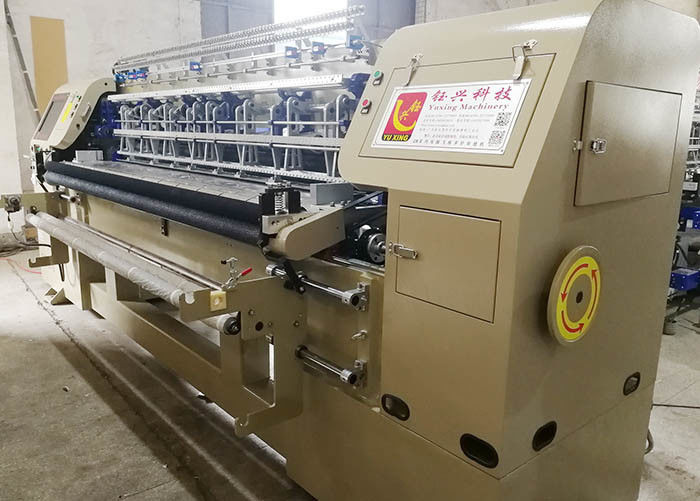

    94 Inches 1000 RPM Beddings Computerized Quilting Machine 1
