| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-128-2/3CS |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packed by plastic film |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 SETS/MONTH |
| Quilting Width: | 3200 Mm | Dimension(l*w*h): | 5500*1750*1700 Mm |
|---|---|---|---|
| Max Sewing Speed: | 1000 RPM | Voltage: | 380V /220V 50HZ/60HZ |
| Power: | 7 KW | Weight: | 5500 KG |
| Warranty: | One Year | After-sales Service Provided: | Online Video Service |
| High Light: | 800RPM Shuttle Quilting Machine,3200mm Shuttle Quilting Machine,195m/H Shuttle Quilting Machine |
||

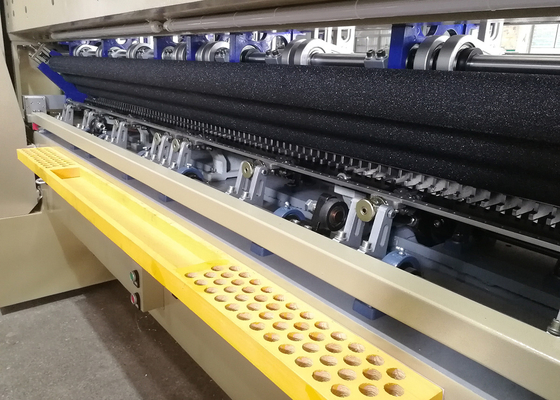

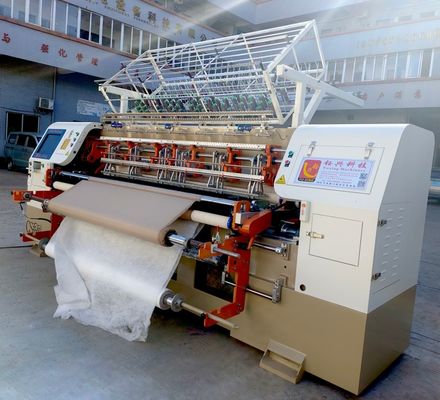

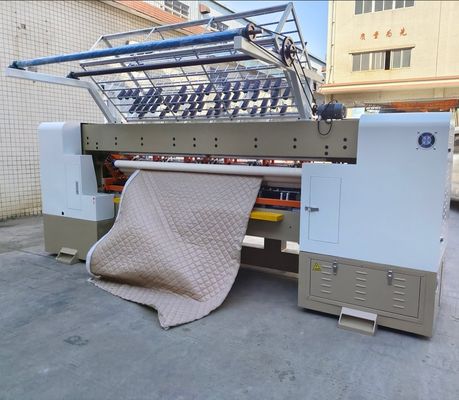

380V 3 Phase Computerized Bedspreads Shuttle Quilting Machine
Computerized Quilting Machine Function:
1. Adopt the advanced computer and mechanistic technology.
2. Machine's needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled by lube.
3. Needle bar frame structure is more firm and durable, the cost of maintenance is cheaper.
4. Saddling rack and roller are driven by servo equipment.
5. The Principal axis uses the frequency conversion device.
6. Adjust speed by computer, the speed can reach 800r/min,the stitch can be set between 2-6mm.
7. 360°random quilting and limitless multi-span and independent quilting.
8. Compensation function can effective solution for looping pattern with thick material.
9. Advanced and practical testing upper thread broken techniques,the machine will be auto-stop when the upper thread is broken.
10. The infrared system ,make your operate more safe.
11. The pattern editing is easy to learn.
12. Machine have ringing notice when start machine.
| Model | YXS-128-2/3CS |
| Dimension(L×W×H) | 5500*1750*1700 |
| Quantity of needle bar | 3 |
| Quilting width | 3200 |
| Space between needle rows | 76.2(3')/ 152.4(3'+3') |
| Space between needles | 25.4 |
| X-axis movement dispacent | 304 |
| Thickness of quilting | ≤50 |
| Stitch length | 2~6 mm |
| Speed of operation(m/H) | 20~210 |
| Model of needle | 16#,19# |
| Speed of main shaft | 500~1000 r/min |
| Total power required | 7KW |
| Voltage |
380V/50HZ 220V/60HZ |
| Gross weight | 5500kg |
Appropriate to:
bedspreads, garments, duvets, comforters, quilts, bag, sleeping-bags, nightgown, and house adornments.
Pattern
