Multi Needle 800r/min 94 Inch Duvet Making Machine

Multi Needle 800r/min 94 Inch Duvet Making Machine

  • Multi Needle 800r/min 94 Inch Duvet Making Machine
  • Multi Needle 800r/min 94 Inch Duvet Making Machine
Multi Needle 800r/min 94 Inch Duvet Making Machine
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE IOS9001
Model Number: YXS-94-2C/3C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets/month
Contact Now
Detailed Product Description
Product Name: Duvet Quilting Machine Quilting Width: 2.4m
Speed: 500-800r/min Yield: 10-195m/hour
Stitch: 2mm-6mm Material Thickness: Max. 50 MM
Guarantee: 12 Months Needle Bar Distance: 3 Inch / 3inch+3inch
High Light:

94 Inch Duvet Making Machine

,

Multi Needle Duvet Making Machine

,

800r/min Duvet Making Machine

Computer Control 94 Inch Duvet Making Machine For Quilting With Multi Needle



 This duvet making machine is a kind of multi needle lock stitch quilting machine. Compared with single needle quilting machine, because it works continuously, it doesn't need worker to put wadding into quilt cover, then fix onto the frame. It is working with rolls. Multi needles works together, sewing with different design stitch. After quilting well, it needs to cut the suitable size, then use overlock sewing machine to sew the edge of quilt. The output is much higher than that of single needle quilting machine. It is widely used for producing high-quality garments, quilt covers,blanket, gloves,sleeping bag, pajamas,bed spread,seat cover, and household



Functions:

1. Easy to draw new desig by mouse and it can connect usb disk to copy new design.

2. Ringing notice and infrared system, which can make the operation safer.

4. Principal axis uses the frequency conversion device.

5. Saddling rack and roller are driven by servo equipment.

6. Adopt the advanced computer and mechanical manufacturing process technology.

7. Multi-span independent pattern (360°and 180° patterns are available).

8. Compensation function, an effective solution for looping pattern with thick material.

9. Needle bar and press plate are connected by cam-free double-swinging device. This structure is high precision and durable. it can avoid lubrication and dirty material effectively.

10. Adjust speed by the computer from 500rpm to 800r/min, the stitch can be set between 2mm-6 mm.

11. Advanced and practical up thread-break detection unit, the machine is auto-stop when the thread is broken.



Specification:

Product Name High Speed Computerized Shuttle Multi-needle Quilting Machine
Model YXS-94-2/3C(3''/3”+3”)
Size(L*W*H) 4.6m*1.5m*1.7m
Weight 4.6 ton
Quilting width 2450mm
Needle bar space 3C 152.4mm
Quilting thickness maximum 700gsm. Thicker fabric need to be customized
Running speed 500-800r/min
One hour yield 10m-195m
Needle model #16,#19 German needle
X- stroke 254mm
Distance between Needles 25.4mm
Stitch  2mm-6mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Total Power 6KW

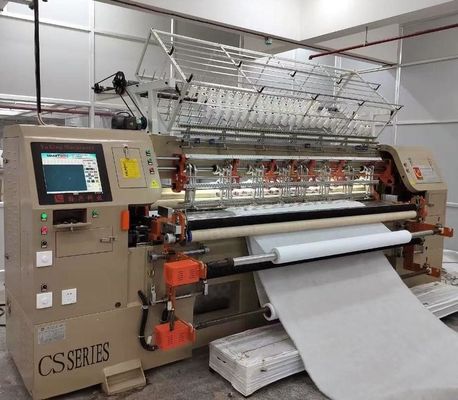

Multi Needle 800r/min 94 Inch Duvet Making Machine 0



Pattern show

Multi Needle 800r/min 94 Inch Duvet Making Machine 1
