| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXH-128-50.8B |
| Minimum Order Quantity: | 1 Sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Sets/month |
| Product Name: | Quilting Embroidery Machine | Work Width: | 3.2m |
|---|---|---|---|
| Running Speed: | 1000rpm | Head Qty: | 33pcs |
| Service: | Online Technical Support/design Drawing | Application: | Car Mat/leather Shoes/bags |
| High Light: | 3.2m Embroidery Quilting Machine,1000rpm Embroidery Quilting Machine,3.2m Leather Quilting Machine |
||

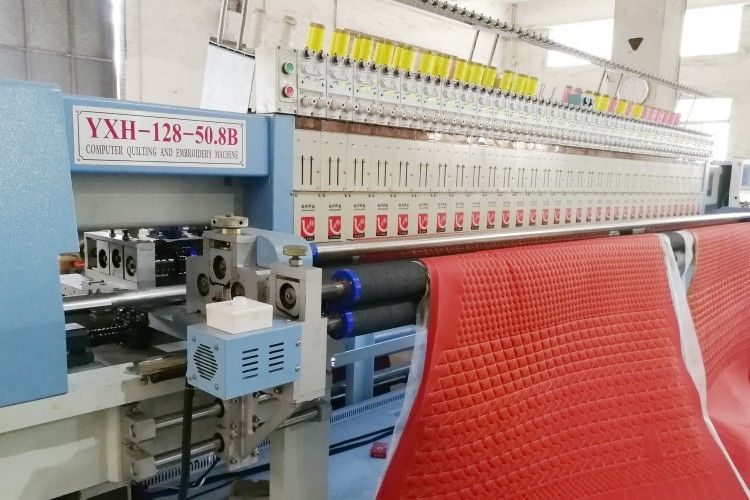

66 Needles 1000rpm Computer Embroidery Machine For Leather / PU / PVC
This kind embroidery machine with quilting function is widely used in PU / leather processing for car interior, leather shoes, bags etc.It is quilting and embroidery together, the output is higher than that of ordinary embroidery machine. It is compatible to embroidery designs, each needle is single controlled. Easy operation and less maintenance.
Functions:
1. Quilting and embroidery work together.
2. Brand motor and computer sytem.
3. 4 tension motors controll the tension of different sort of fabric, so it can process more precisely.
4. X,Y,Z direction adopt the servo control system,to ensure the accuracy of embroidery.
5. When thread running out or thread broken, machine will auto stop.
6. The quilting embroidery machine auto-returns to patch-up the unfinished embroidery designs.
7. The automatic lubrication system simplify the procedure of maintenance.
8. Single needle control, easy to select different head working together for different design effect.
9. Continuously quilting independent patterns function,jump and tack quilting function.
10. Common embroidery machine designs like Tajima,Barudan,ZSK and SWF formats are readable..
11. The unique mechanical structure can reduce the vibration,thereby its better to control the vibration and reduce noise.
12. Machine has power-off protection ,power-off meoory function
Products specification
| Product Name | Computer Quilting and Embroidery Machine |
| Model | YXH-128-50.8B |
| Dimension (L*W*H) | 540cm*140cm*200cm |
| Gross Weight | 3 tons |
| Quilting width | 340cm |
| Needle space | 5.08cm |
| X-stroke | 260mm |
| Head quantity | 33pcs |
| Needle quantity | 66pcs |
| Shuttle size | Big rotating shuttle |
| Quilting thickness | maximum 600gsm |
| Stitch size | adjust from 0.15 to 12.7mm |
| Needle model | #14,#16 |
| Principal drive type | Servo motor drive |
| Voltage(AC) | 3 phase 380V/50HZ,/220V/60HZ |
| Total power required | 5000W |
