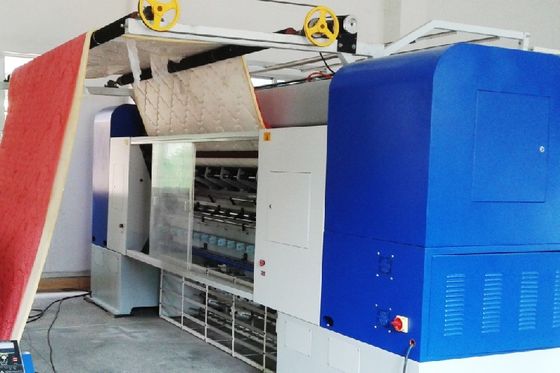

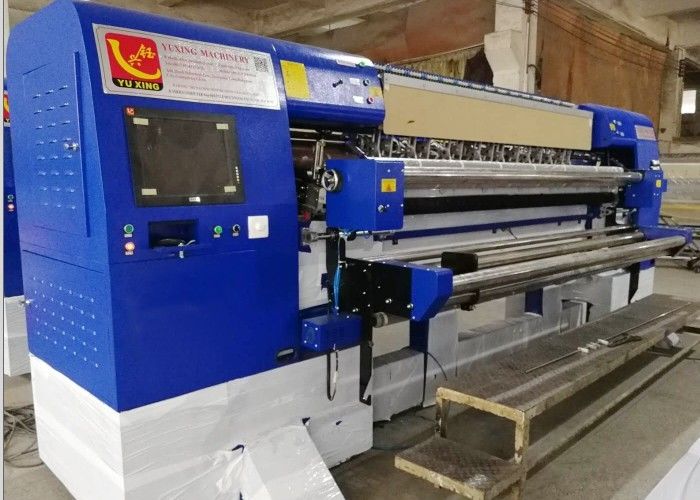

Computerized Automatic Quilting Machine With Panasonic Servo Motor

Computerized Automatic Quilting Machine With Panasonic Servo Motor

  • Computerized Automatic Quilting Machine With Panasonic Servo Motor
  • Computerized Automatic Quilting Machine With Panasonic Servo Motor
Computerized Automatic Quilting Machine With Panasonic Servo Motor
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE
Model Number: YXN-94-3D
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 20 SETS/MONTH
Contact Now
Detailed Product Description
Machine Size: 500*165*200 CM Quilting Width: 240 CM
Max Rolling Speed: 1200 RPM Weight: 6500 KG
Warranty: One Year After-sales: Online Support
Output: 10-250 M/H Stitch: 2MM -8 MM
High Light:

8cm Automatic Quilting Machine

,

1200RPM Automatic Quilting Machine

,

8cm Automated Quilting Machine

Computerized Automatic Quilting Machine With Panasonic Servo Motor



Quilting Machines Function:

  1. With much more output comparing with Single Needle Quilting Machines, pattern editting function and USB connecting to input patterns.
  2. Adopt Non-shuttle quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.
  3. Needle bars and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
  4. Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment
  5. CE Certificate of chain stitch quilting machine
  6. The CNC precision control system, no need to adjust the press plate's position when the thickness of quilting material varies
  7. Strong functions of pattern-combining and Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses
  8. Fault detection function for ease of determining the running state of the machine at any given time

Feature:

1. Adopt the advanced process design.
2. Needle bars and pressing block take the double rocker avoid the materials be soiled by lube.
3. High rigidity machine body, perfect protecting equipment and steady-going control system.
4. X,Y motors are driven by Panasonic servo motor system, and principal axis takes frequency ports system.
5. Test the working state of all sensors and computer in real time.
6. Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.
7. Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.
8. 360°quilting and limitless multi-span and independent quilting(can do jump patterns).
9. Computer can be in store 1000 patterns with 300 patterns already existing, and with pattern editing function.
10. High speed, steady running, low noise, very thick material with precise quilting.
11. Multi-span and independent quilting with pattern compensation function.
12. Ringing notice when start machine.



Specification:

Product Name Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model

YXN-94-3D(3"+3")

Size(L*W*H) 500*165*200 Cm
Weight 6500kg
Quilting width 240Cm
Needle bar space 76.2,76.2,(3"+3")
Quilting thickness 8Cm
Rolling speed 600-1200r/min
Output 10-250m/hour
Needle type #21-#24
X-axis movement 41cm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 7.5KW



Pattern
Computerized Automatic Quilting Machine With Panasonic Servo Motor 0
