|Place of Origin:||China|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||plastic film packing|
|Delivery Time:||16 Days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||30 SETS/MONTH|
|Quilting Width:||2.45m||Dimension(l*w*h):||450*150*170 Cm|
|Sewing Speed:||200-800 R/MIN||Voltage:||380V / 220V|
|Power:||5.8 KW||Weight:||4600 KG|
|Warranty:||12 MONTH||After-sales Service Provided:||Online Video Call|
Beddings Computer Sewing Machine Embroidery,
2.45m Computer Sewing Machine Embroidery,
Computerized Sewing And Quilting Machine

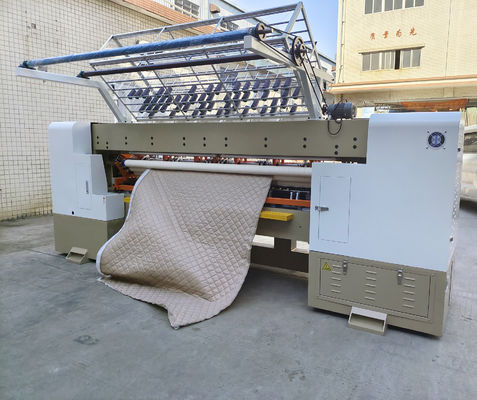

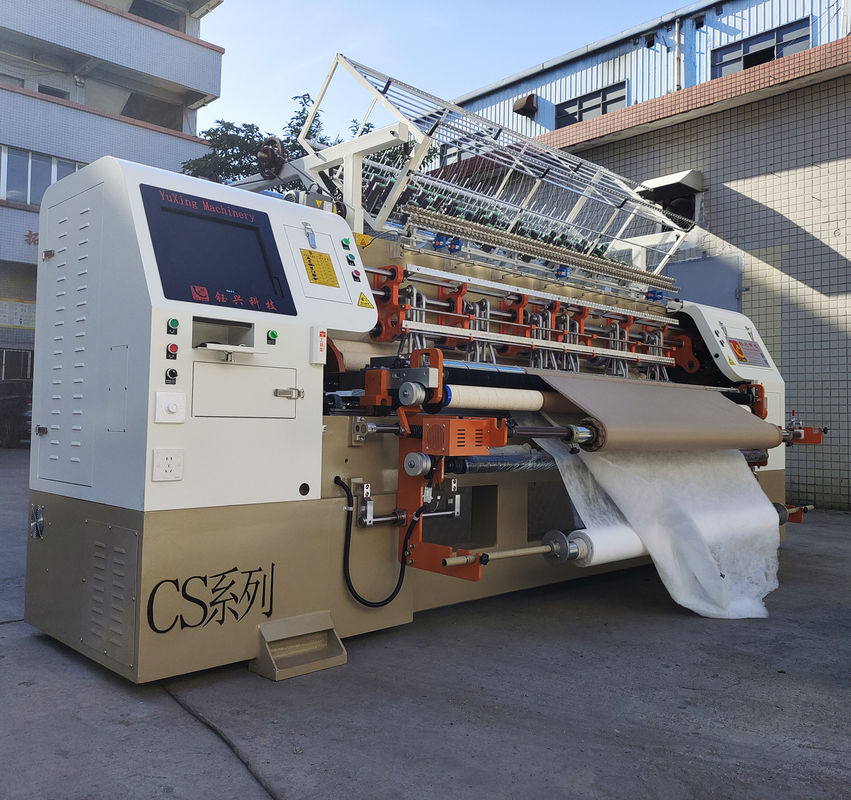

94 iches Computerized Bedspreads Shuttle Quilting Machine
1. Computer use Windows operate software,LCD screen,Adopting CNC control program.
2.The moving structure of needle bar is without needle post to avoid dirtying the materials.improve the working speed of
machine,don't need to lubricate frequent.it's easy to maintenance.Saddles and rollers driven by servo devices.
3.Fabric roller which in front of machine controled with motor, make fabric more tighter,design will be more beautiful.
4.The main shaft adopt inverter control equipment.
5.Self-provided large quilting designs for your choice.
6.Easy and quick editing of patterns.
7.Computer operate system with more than 250pcs designs,also with designer software,customer could draw new design by themselves.
8.Could copy new designs into macine by USB flash.
9.Quilting stitches length between 2mm-6mm adjustable,
10. Function of pattern compensation,an effective solution to the distortion of patterns when quilting thick materials.
11.Quilting, simulation shows.
12.Automatic pick-up needle, orientation brake system
13.X/Y direction used servo controned ensure the precision of quilting.
14.Infrared thread break detector sensors to guarantee the safety of the operator.
1.It is the best equipment which it produce mattress,bedspread,quilt,gament or cartpacking,It is low cost,high economic results and little risk,it will be your best choice.
|Quantity of needle bar||3|
|Space between needle rows||152.4(3'+3')|
|Space between needles||25.4|
|X-axis movement dispacent||304|
|Thickness of quilting||≤50|
|Stitch length||2~6 mm|
|Speed of operation(m/H)||20~195|
|Model of needle||16#,19#|
|Speed of main shaft||800 r/min|
|Total power required||5.8 KW|
