| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXN-94-3D |
| Moving Style: | Multi Needle Quilting Machine | Condition: | New |
|---|---|---|---|
| Dimension(l*w*h): | 500*165*200cm | Max Sewing Speed: | 1200rpm |
| After-sales Service Provided: | Video Technical Support | Power(w): | 7.5 Kw |
| Certification: | CE | Quilting Width: | 2450 MM |
| Highlight: | Chain Stitch Quilting Machine 1200rpm,Bedding Chain Stitch Quilting Machine,Panasonic Drivers Computerized Quilting Machine |
||
Application:
It is widely used for mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers,decoration and more.
Quilting machine Features:

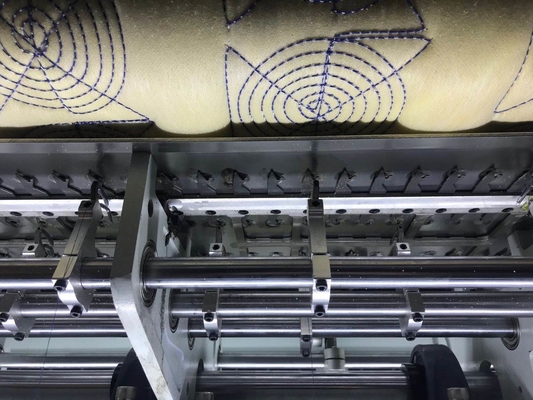

New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
360°Multi-span and independent patterns, automatic thread trimming function.
Self-developed “Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
The spindle, X, Y axis all adopt high-power servo motor
Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
Technical Parameter:
| Model | |
| Dimension(L*W*H) | 5400*1600*2300 mm |
| Quilting width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2" ; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Quilting thickness | 80mm |
| Stitch length | 1-12mm |
| Production speed | 60-230 M/H |
| Model of needle | 21#,22#,23#,24# |
| Quilting speed | 1200R/Min |
| Voltage | 380V/50HZ 220V/60HZ |
| Power | 8KW |
| Weight | 5500kg |
