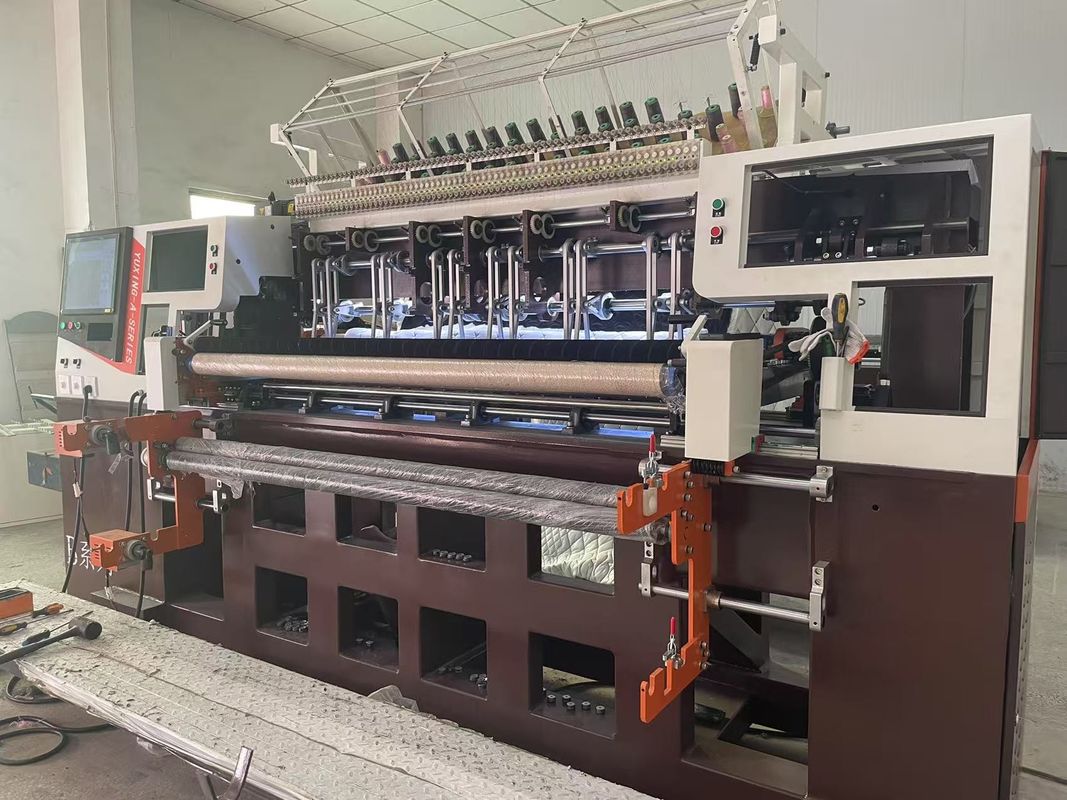

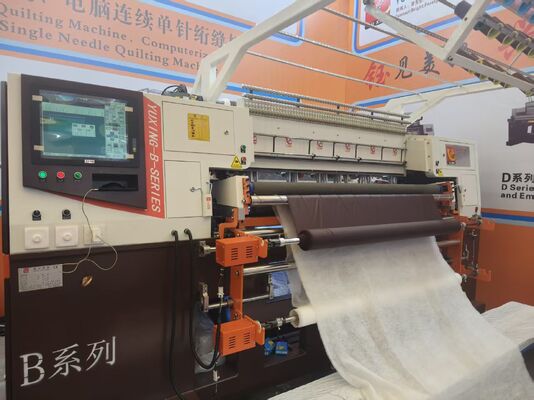

1400RPM 1.7m Computerized Rotary Hook Multi-needle Quilting Machine

FUNCTION:

1. It can replace most functions of two needle bar shuttle quilting machine.

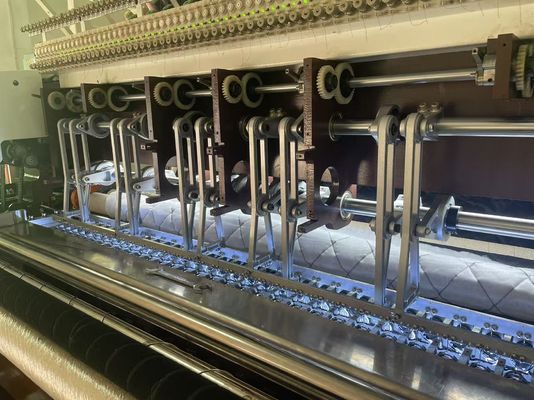

2. Two needle rows unique combination design, space between front and back needle bar is 3inches, left to right needle
space is 2 inches; and back needle row can be adjustable,to make the front-back needle space be 1 inch. "

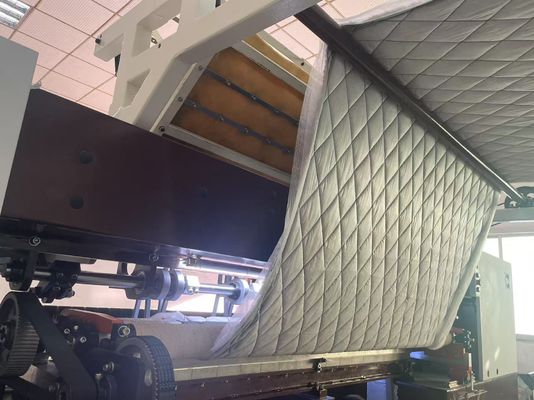

3. Adopt drum structure, the Y axis can achieve continuous production.
4. Adopt big rotating shuttle, high speed, high efficiency, low noise.
5. Can adjust speed by computer and reach max 1400r/min,the stitch can be set between 2mm-8mm.
6. X,Y,Z axis all use high power servo motors. High precision, pretty stitch, and not easy to thread broken.
7. Using mouse to draw patterns directly in machine computer, and are compatible with embroidery design format(*. DST),
the patterns can copy to the computer by USB. And easy to draw various designs for customers.
8. Auto stop when front thread or bottom thread is broken. And tension maintenance device to keep fabric feed in smoothly.
9. Remarks: We can make special model according to customer's requirement.
