2M Quilting Width Rotary Hook Lock Stitch Quilting Machine for Garment
  • name
  • name

2M Quilting Width Rotary Hook Lock Stitch Quilting Machine for Garment

MOQ: 1 set
Price: Negotiable
Standard Packaging: express packing
Delivery Period: 20 workdays
Payment Method: L/C, T/T
Supply Capacity: 16 set/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing Machinery
Certification
CE
Model Number
YXX-80-3''-50.8B
Rating Power:
7.0KW
Needle Type:
24/180 23/160 22/140 21/130
Rolling Speed:
500-1400RPM
Voltage:
380V
Automatic Needle Threader:
Yes
Number Of Head:
Multi Needle
Function:
Quilting
Max Speed:
1400 Rpm
Patterns:
More Than 200
Needle Bar:
2
Product Description

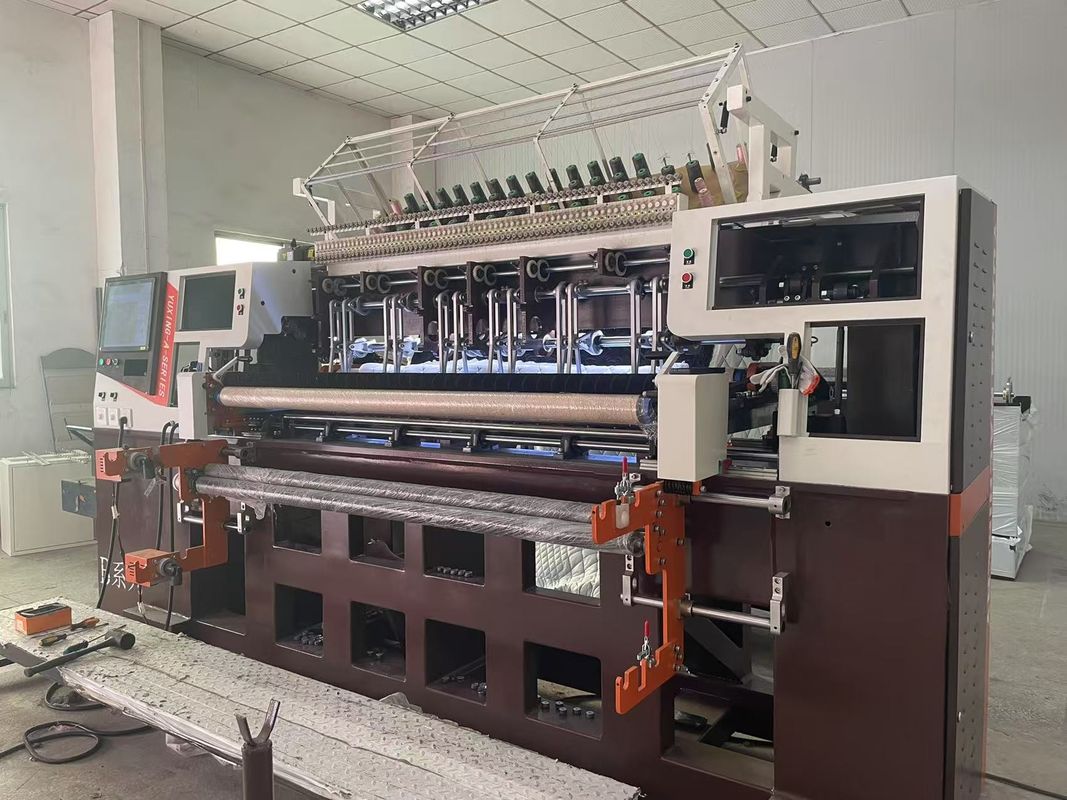

2M Quilting Width Computerized Rotating Shuttle Multi-needle Quilting Machine



Function:

1. Can replace most functions of two needle bar shuttle quilting machine.

2. 2 needle rows unique combination design, space between front and back needle bar is 3 inches, left to right needle
space is 2 inches; and back needle row can be adjustable, to make the front-back needle space be 1 inch.

3. Adopt drum structure, the Y axis can achieve continuous production.

4. Adopt the big rotating shuttles, the machine can achieve high speed, high efficiency, low noise

5. Adjusting the machine speed by computer, and the speed can reach max 1400r/min,the stitch can be set between 2mm-8mm.

6. The X,Y,Z axis all use high power servo motors. High precision, pretty stitch, and not easy to thread broken.

7. Can draw patterns directly in machine computer and are compatible with embroidery design format(*. DST), patterns can copy by USB to machine computer. Easy to draw various designs for customers.

8. The machine can auto stop when front threads or bottom threads are broken. And the tension maintenance device to keep fabric feed in smoothly.



Parameter:

Model YXX-80-3"-50.8B
Size: L*W*H 4300*1000*1860mm
Weight 4500KG
Quilting width 2000mm
Needle bar space 76.2(3")
Needle space 50.8mm
X-axis movement 204mm
Quilting thickness ≤30mm
Stitch 2-8
Output 10-180m/h
Needle type #14,#16
Rolling speed 500-1400rpm
Rated voltage 380V/50HZ 220V/60HZ
Power 7.0KW
