4 Needle Bars Multineedle Quilting Machine Mattress Production Line

MOQ:	1 SET
Price:	Negotiable
Standard Packaging:	Export packing
Delivery Period:	15 Days
Payment Method:	T/T, L/C
Supply Capacity:	20 SETS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

Model Number

YXN-94-4D

Machine Size:

500*165*200 CM

Quilting Width:

240 CM

Max Rolling Speed:

1200 RPM

Weight:

7.5 T

Warranty:

One Year

After-sales:

Online Video

Output:

10-250 M/H

Stitch:

2-8 MM

Highlight:

240CM Mattress Production Line

250M/H Mattress Production Line

250M/H Multineedle Quilting Machine

Product Description

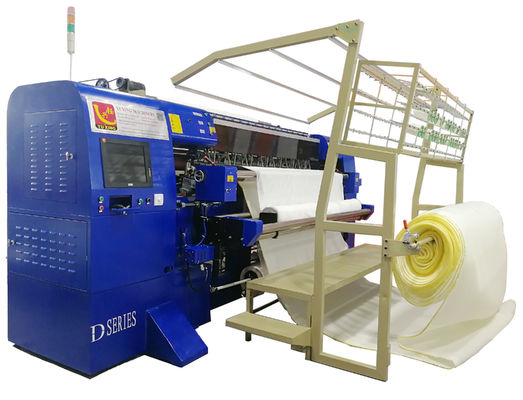

4 Needle Bars Multineedle Quilting Machine Mattress Production Line

This multineedle quilting machine is chain stitch type without shuttle. It can be used in mattress production line. High efficiency, high quality.

4 needle bar quilting machine can make 1", 2", 3", 5", 6", 8", 12", 16" designs.

Quilting Machines Function:

1. Fuselage and beam and foot are reinforced, which help machine works more stably with high speed.

2. High rigidity machine body, perfect protecting equipment and steady-going control system.

3. Firm and durable needle bar frame structure , so that to reduce the cost of maintenance.

4. Except X and Y axis are driven by servo equipment. Principal axis uses servo motor control

5. 360 degree quilting, multi span, tack & jump function. Auto thread trimming function.

6. Adjust speed from 500rpm - 1200rpm by computer, the stitch can be set between 2mm-8mm.

7. New computer system, compatible to embroidery designs.

8. Compensation function,an effective solution for looping pattern with thick material.

9. Practical testing upper and bottom thread broken techniques,the machine is auto-stop when thread is broken.

10. When hand block the infrared system , machine will auto stop, which makes your operation safer.

11. Pattern editing is easy to learn and computer can connect with usb.

12. When work with thick material, compensation function can solve the problem for looping pattern.

Specification:

Product Name	Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model	YXN-94-4D(2"+3"+3'')
Size(LWH)	500165200cm
Weight	6.5 T
Quilting width	240cm
Needle bar space	50.8,76.2,76.2(2"+3"+3'')
Quilting thickness	8cm
Rolling speed	600-1200r/min
Capacity	10-250m/hour
Needle size	#21-#24
X-axis movement	41cm
Needle space	25.4mm
Stitch	2-8mm
Rated voltage(AC)	380V/50HZ,/220V/60HZ
Power	7.5KW

4 Needle Bars Multineedle Quilting Machine Mattress Production Line 0

4 Needle Bars Multineedle Quilting Machine Mattress Production Line 1

Pattern
4 Needle Bars Multineedle Quilting Machine Mattress Production Line 2
