Name: 2400MM 1500RPM Chain Stitch Mattress Quilting Machine
Brand: Yuxing
SKU: YXN-94-3DS
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (153 reviews)

Home Products Mattress Making Machine

2400MM 1500RPM Chain Stitch Mattress Quilting Machine

Product Details:

Place of Origin:	China
Brand Name:	Yuxing
Certification:	CE, ISO9001
Model Number:	YXN-94-3DS

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Export packing
Delivery Time:	20 Days
Payment Terms:	T/T, L/C
Supply Ability:	20 SETS/MONTH

Contact Now

Detailed Product Description

Machine Size:	51.652 M	Quilting Width:	2.4 M
Max Rolling Speed:	1500 RPM	Weight:	7500 KG
Warranty:	12 Months	After-sales:	Online Support
Output:	10-320 M/H	Stitch:	2-8 MM
High Light:	1500r/minMattress Quilting Machine , 320M/H Mattress Quilting Machine , 2.4M Mattress Quilt Making Machine

2400MM 1500RPM Multi Needle Mattress Quilting Machine Chain Stitch Type

Multi Needle Mattress Quilting Machines Function:

Unique advanced machine design, working speed up to 1500rpm .
Advanced upper and bottom thread breakage detection function , auto needle lifting when machine stoped .
Quilting Tack and Jump patterns for option ( cover 180° , 360° patterns) with high precision without skipped stitches.
Auto refueling to simplify the machine daily maintenance.
Mouse easily drawing new patterns, compatible to embroidery patterns.
New generation quilting software , easy operation, more precise quilting.
About 300 patterns already save in computer program, USB connection to insert new patterns .
Main axis and x, y axis all controlled by big power servo equipment.
Infrared system makes the operation safer.
new computer system can detect sensor problems. Electrical components can make self fault tips

Specification:

Product Name	Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model	YXN-94-3E(2"+3")
Size(LWH)	51.652 M
Weight	7500kg
Quilting width	2.4M
Needle bar space	50.8,76.2,(2"+3");
Quilting thickness	80mm
Rolling speed	600-1500r/min
Output	10-320m/hour
Needle type	#21-#24
X-axis movement	410mm
Needle space	25.4mm
Stitch	2-8mm
Rated voltage(AC)	380V/50HZ,/220V/60HZ
Power	8.5KW

Warranty

Warranty: 1 year.

1) During warranty, the machine parts(except consumable parts, like needle, hook, looper, etc) can

be replaced for free.

2) Computer can be sent back to repair. Under warranty, if computer broken, it can be replaced for

free, but first need to send computer back for checking.

3) Consumable parts is not under warranty. We provide additional consumable parts with machine

for about one year to use. Pls refer to packing list.

4) Offer life-time after service. Any time if machine has problem, customer can tell us problem with

photos and small video. We will help to solve problem by online guide.

If problem very serious, we can send technician to customer's place as request. Customer need to

bear visa cost, round trip flight tickets, food and board, and technician labor cost USD100/day.

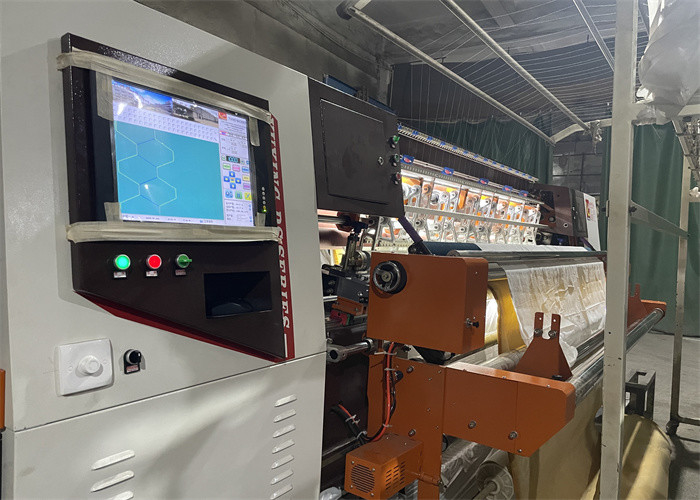

2400MM 1500RPM Chain Stitch Mattress Quilting Machine 0

Pattern
2400MM 1500RPM Chain Stitch Mattress Quilting Machine 1

2400MM 1500RPM Chain Stitch Mattress Quilting Machine 2
