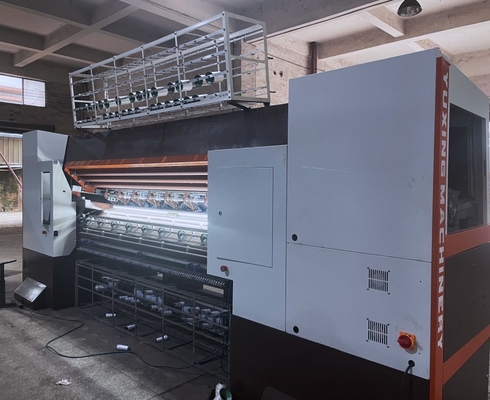

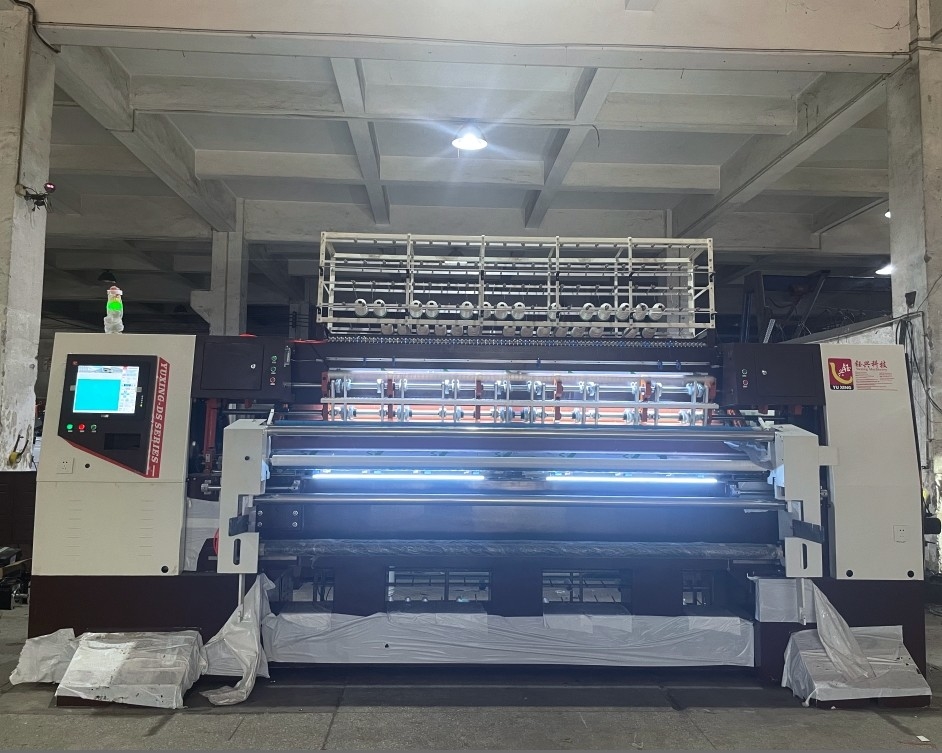

300M/H Computer Control Multi Needle Quilting Mattress Making Machine 240CM Width

300M/H Computer Control Multi Needle Quilting Mattress Making Machine 240CM Width

300M/H Computer Control Multi Needle Quilting Mattress Making Machine 240CM Width
300M/H Computer Control Multi Needle Quilting Mattress Making Machine 240CM Width
300M/H Computer Control Multi Needle Quilting Mattress Making Machine 240CM Width
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXN-94-3DS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 20 SETS/MONTH
Contact Now
Detailed Product Description
Machine Size: 5000*1650*2000 MM Quilting Width: 2400 MM
Rolling Speed: 600-1500 RPM Weight: 8000 KG
Warranty: 12 Months After-sales: Online Video
Output: 10-300 M/H Stitch: 2-8 MM
Highlight:

2450mm Mattress Making Machine

,

320M/H Mattress Making Machine

,

1500r/min Mattress Making Machine

Automatic Lubrication System Chain Stitch Mattress Quilting Making Machine



Quilting machine function:

1. Adopt the advanced process design.

2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.

3. High rigidity machine body,perfect protecting equipment and steady-going control system.

4. X,Y motors are driven by servo system, and principal axis takes frequency ports system.

5. Checking the working state of all sensors and computer in real time.

6. The auto-stop system when the bottom or upper threads broke by infrared.

7. Auto lift needle and adjust the speed by computer.

8. Auto faults tips for servo motor system and transducer,which is convenient to eliminate problems.

9. 360°quilting and limitless multi-span and independent quilting.

10. High speed, steady running, low noise, very thick material with precise quilting.

11. Ringing notice when start machine.



Specification:



Product Name Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model

YXN-94-3DS(3"+3")

Size(L*W*H) 5000*1650*2000mm
Weight 8000kg
Quilting width 2400mm
Needle bar space 76.2,76.2(3"+3")
Quilting thickness 80mm
Rolling speed 600-1500 r/min
Output 10-300 m/hour
Needle type #21-#24
X-axis movement 410mm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 7.5KW





300M/H Computer Control Multi Needle Quilting Mattress Making Machine 240CM Width 0

Support and Services:

Multi Needle Quilting Machine Technical Support and Service

Our team of technical experts is dedicated to providing the best support for our customers who are using the Multi Needle Quilting Machine. We offer a range of services, including:

  • Installation and Setup Assistance
  • Troubleshooting and Problem Resolution
  • Upgrades and Software Updates
  • Warranty Support
  • Parts Replacement and Repair

We are also available to provide training and advice for customers who are using the Multi Needle Quilting Machine. Our team is committed to helping our customers get the most out of this product.



Pattern show:
300M/H Computer Control Multi Needle Quilting Mattress Making Machine 240CM Width 1



Packing and Shipping:

Multi Needle Quilting Machine is packaged by plastic film, then fixed with steel wire into the container during shipment.

300M/H Computer Control Multi Needle Quilting Mattress Making Machine 240CM Width 2
