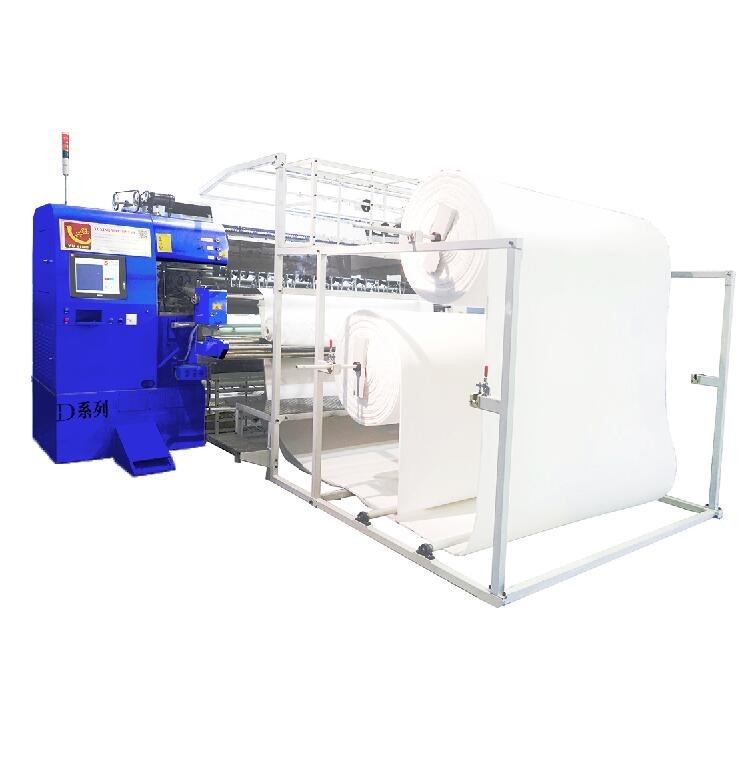

1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle

1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle

  • 1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle
  • 1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle
  • 1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle
  • 1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle
  • 1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle
  • 1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle
1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE
Model Number: YXN-94-3D
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 SETS/MONTH
Contact Now
Detailed Product Description
Quilting Width: 240 CM Size: 500*165*200 CM
Weight: 7000 KG Max Work Speed: 1200 RPM
Maximum Thickness: 80mm Yield: 10-250 M/H
Warranty: 365 Days Application: Mattress/home Textile Factory
High Light:

Mattress Quilting Machine 240CM

,

Mattress Quilting Machine 250M/H

,

Multi Needle Mattress Making Machine

Computerized Non-shuttle Multi Needle Mattress Quilting Machine



catalog download

chain stitch quilting machine catalog.pdf

Mattress Quilting Machines Function:

  1. This mattress making machine is a kind of multi needle quilting machine for mattress production. .
  2. Main motor and x, y motors are driven by servo system.
  3. Newly upgrade computer system and reinforced machine body support machine works with maximum 1200rpm with low noise.
  4. With much more output comparing with Single Needle Quilting Machines.
  5. Adopting Non-shuttle quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.
  6. Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
  7. Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and adjust speed by computer
  8. CE Certificate of quilting machine
  9. The self developed computer control system, no need to adjust the press plate's position when the thickness of quilting material varies
  10. Strong functions of Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses
  11. Fault detection function for ease of determining the running state of the machine at work time.

Specification:

Product Name Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model

YXN-94-3D(2"+3")

Size(L*W*H) 5m*1.65m*2m
Weight 7000kg
Quilting width 240cm
Needle bar space 50.8,76.2,(2"+3")
Quilting thickness 80mm
Rolling speed 600-1200r/min
Output 10-250m/hour
Needle type #21-#24
X-axis movement 41cm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 7.5KW



1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle 0





Pattern
1200RPM Yuxing Mattress Quilting Machine Computerized Multi Needle 1
