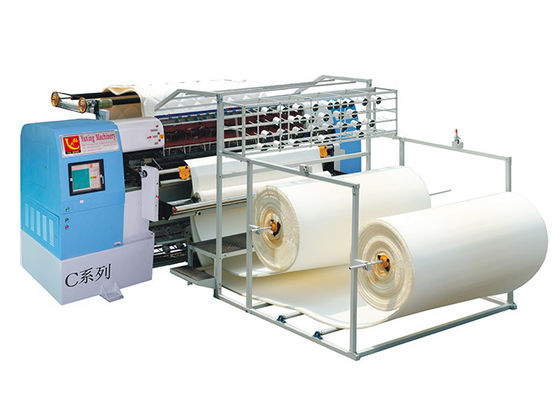

Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine
  • name
  • name
  • name

Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Export packing
Delivery Period: 15 Days
Payment Method: T/T, L/C
Supply Capacity: 20 SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE, ISO9001
Model Number
YXN-94-3C
Machine Size:
5000*1600*2000 MM
Quilting Width:
2400 MM
Rolling Speed:
600-900 RPM
Weight:
5000 KG
Warranty:
12 Month
After-sales:
Online Video
Output:
10-200 M/H
Stitch:
2-8 MM
Highlight:

900r/min Mattress Making Machine

,

2485mm Mattress Making Machine

,

180m/hour Mattress Making Machine

Product Description

Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Quilting Machine



Quilting Machines Function:

1. Adopt the advanced process design.

2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.

3. High rigidity machine body,perfect protecting equipment and steady-going control system.

4. X,Y motors are driven by servo system, and principal axis takes frequency ports system.

5. Test the working state of all sensors and computer in real time.

6. Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.

7. Auto faults tips for servo motor system and transducer,which is convenient to eliminate problems.

8. 360°quilting and limitless multi-span and independent quilting.

9. Steady running,high speed,low noise,very thick material with precise quilting.

10 .Ringing notice when start machine.



Specification:

Product Name Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model

YXN-94-3C(2"+3"/3"+3")
Size(L*W*H) 5000*1600*2000mm
Weight 5000kg
Quilting width 2485mm
Needle bar space 50.8,76.2,(2"+3");76.2,76.2(3"+3")
Quilting thickness 8cm
Rolling speed Max. 900r/min
Output Max. 180m/hour
Needle type #21-#24
X-axis movement 410mm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 6500 Watts

Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine 0



Pattern
Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine 1

Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine 2
